Products System

Marksman LUSBL

DP reference, underwater tracking and telemetry system

Engineered for: Vessel

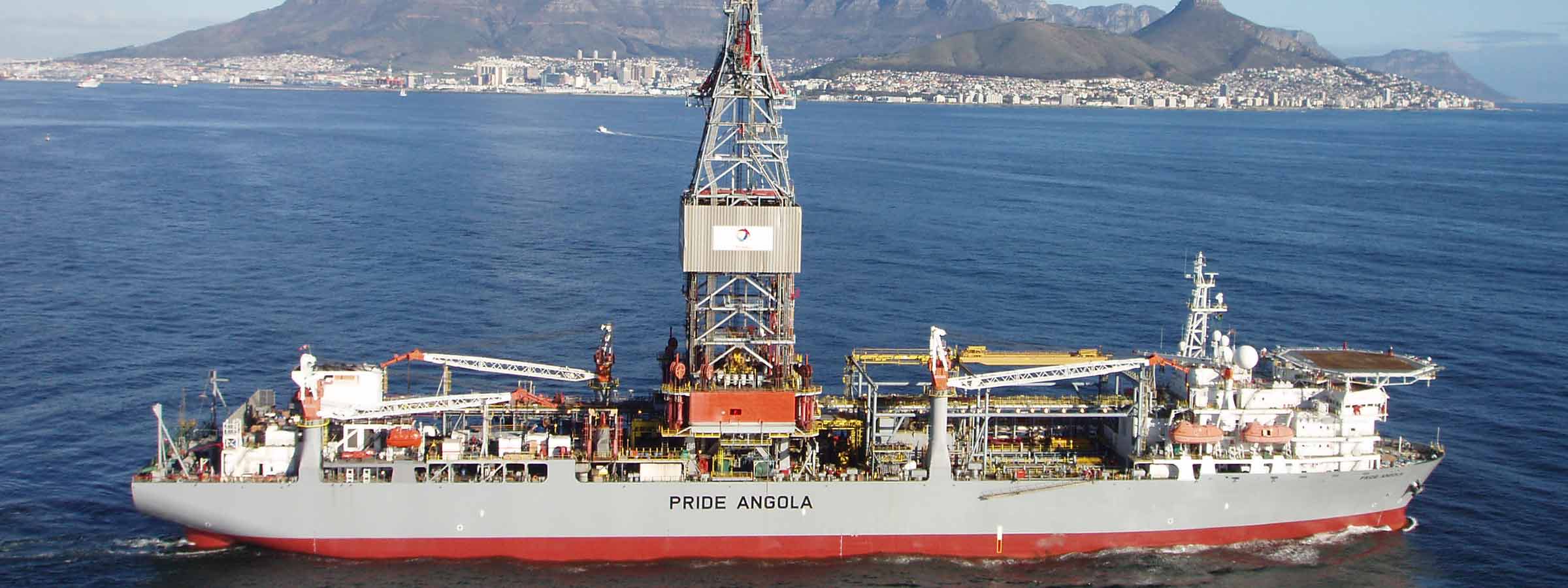

Marksman is an acoustic DP reference and underwater vehicle tracking system developed to meet the requirements of vessels undertaking critical station keeping activities such as drillships, FPSOs and heavy lift vessels.


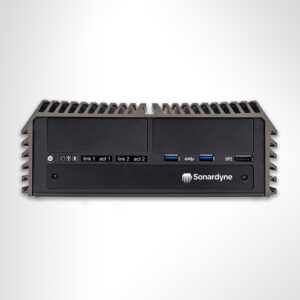

At a glance

Combines USBL and LBL acoustic techniques for optimum performance

Compatible with all makes of DP system ( Class 2/3 ops)

Highly repeatable positioning helps save fuel

Dual redundant and inertial aiding redundancy options

Global track on all types of vessel and water depth

Ultimate precision in any water depth

Want to know more?

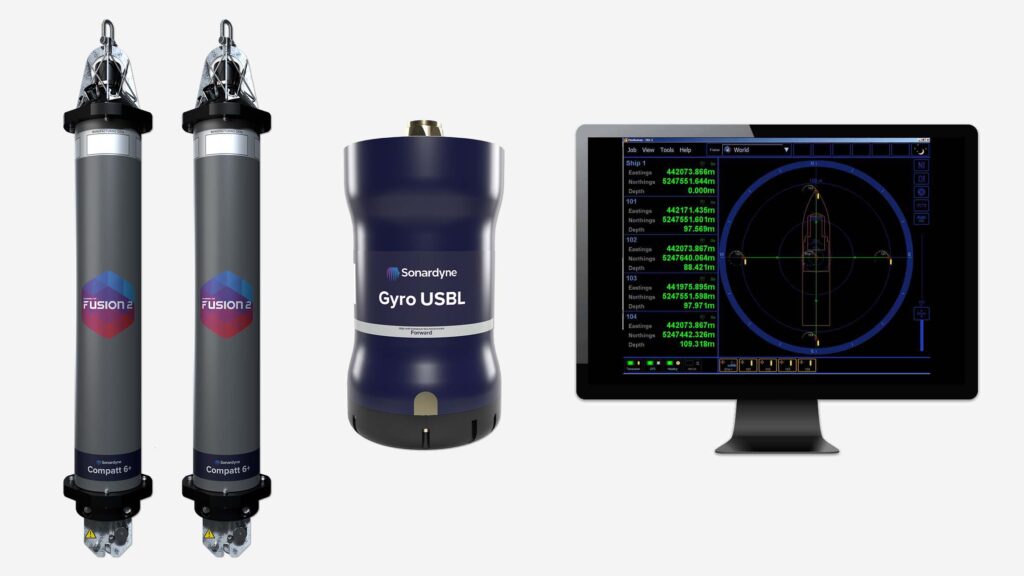

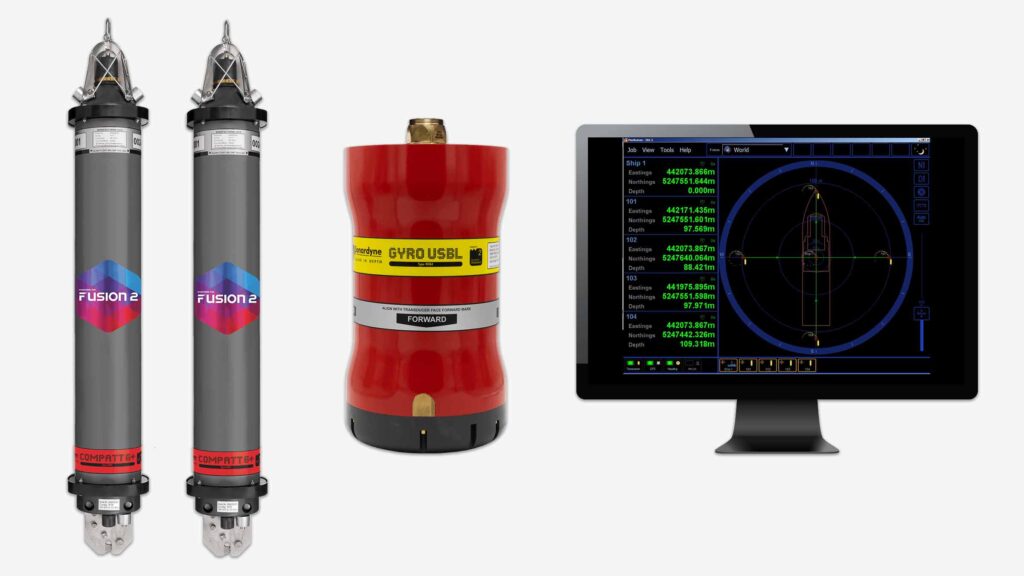

Wide of transponder options including Compatt 6+ and DPT+

GyroUSBL is a pre-calibrated transceiver saving vessel time on installation

Marksman software is easy for DPOs to learn and become comfortable with

Benefits of Marksman for your operations

Precise

LUSBL exploits the greater precision and acoustic range redundancy offered by Long BaseLine (LBL) seabed transponder arrays.

Compatible

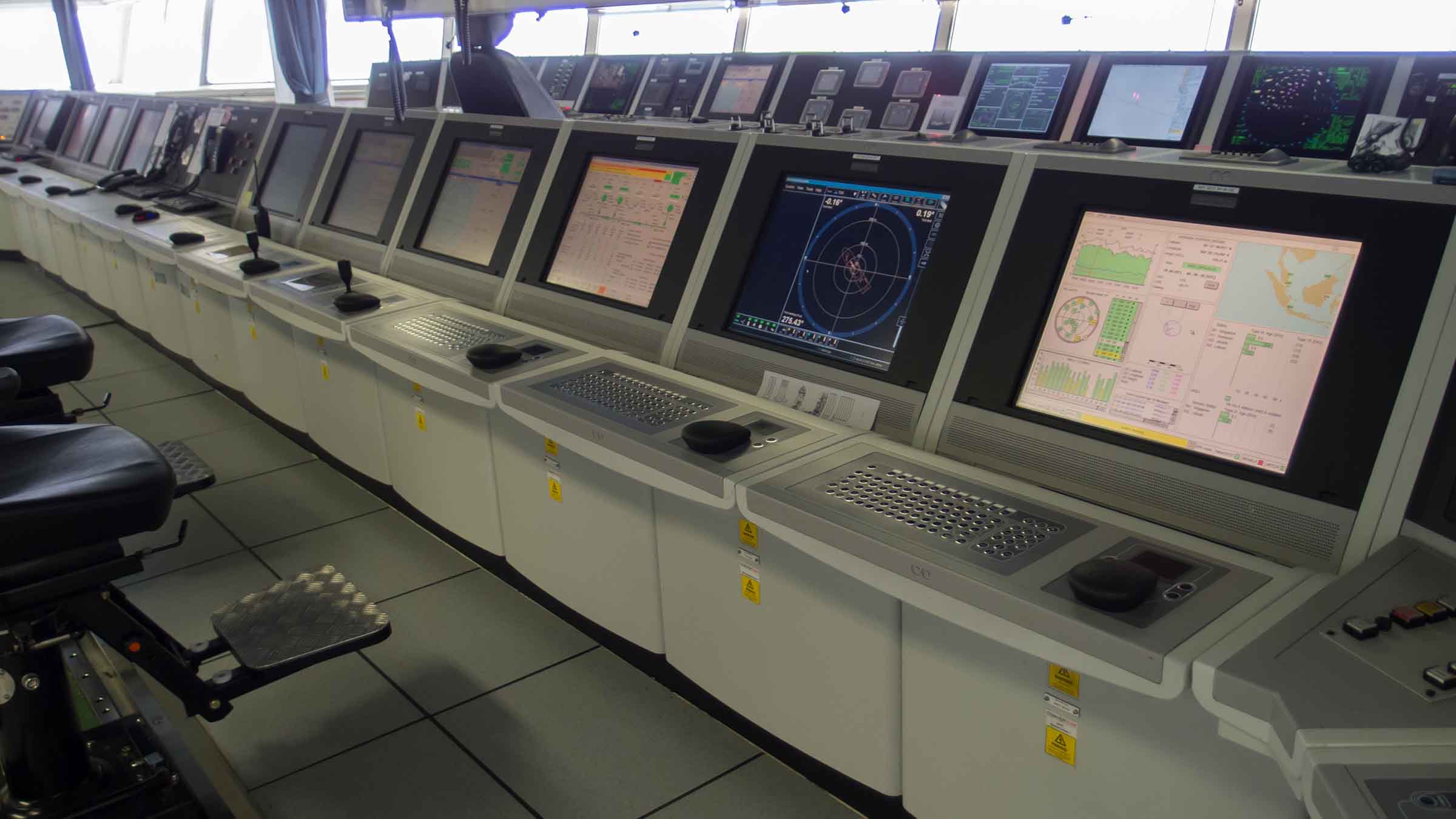

Acoustic position reference system that you can interface with any DP system including GE, Kongsberg, MT, Navis, Rolls-Royce and Wärtsilä.

Integrated

Tightly integrated acoustic and inertial positioning benefits your DP system by improving the accuracy, update rate and reliability of the position.

Overview

The system integrates USBL and LBL acoustic positioning techniques to provide an accurate and highly repeatable position reference for dynamically positioned (DP) vessels.

The configuration is known as LUSBL (Long and Ultra-Short Baseline) and uses a seabed network of transponders to offer enhanced levels of system integrity. With LUSBL, more acoustic ranges mean more redundancy in the solution for the DP desk.

Marksman is a highly configurable and offers features which has made it the primary reference on many installations, particularly in fields in the Gulf of Mexico, Brazil and West Africa.

Redundancy
Dual independent hardware configurations allow subsea operations to continue if any part of the acoustic hardware on the vessel becomes unavailable. There is also option of operating in triple redundancy configuration through the augmentation of our inertial navigation technology – known as DP-INS.

DP-INS
DP-INS has been developed to meet regulatory requirements which state that deep water drilling units must be equipped with three independent positioning reference inputs to their DP system. Traditionally, an acoustic positioning system and two separate GNSS systems are used. However, vulnerability remains should the acoustics be affected by aeration and noise and both GNSS systems simultaneously affected by signal disruption. The latter is particularly common around equatorial regions and during periods of high solar radiation.

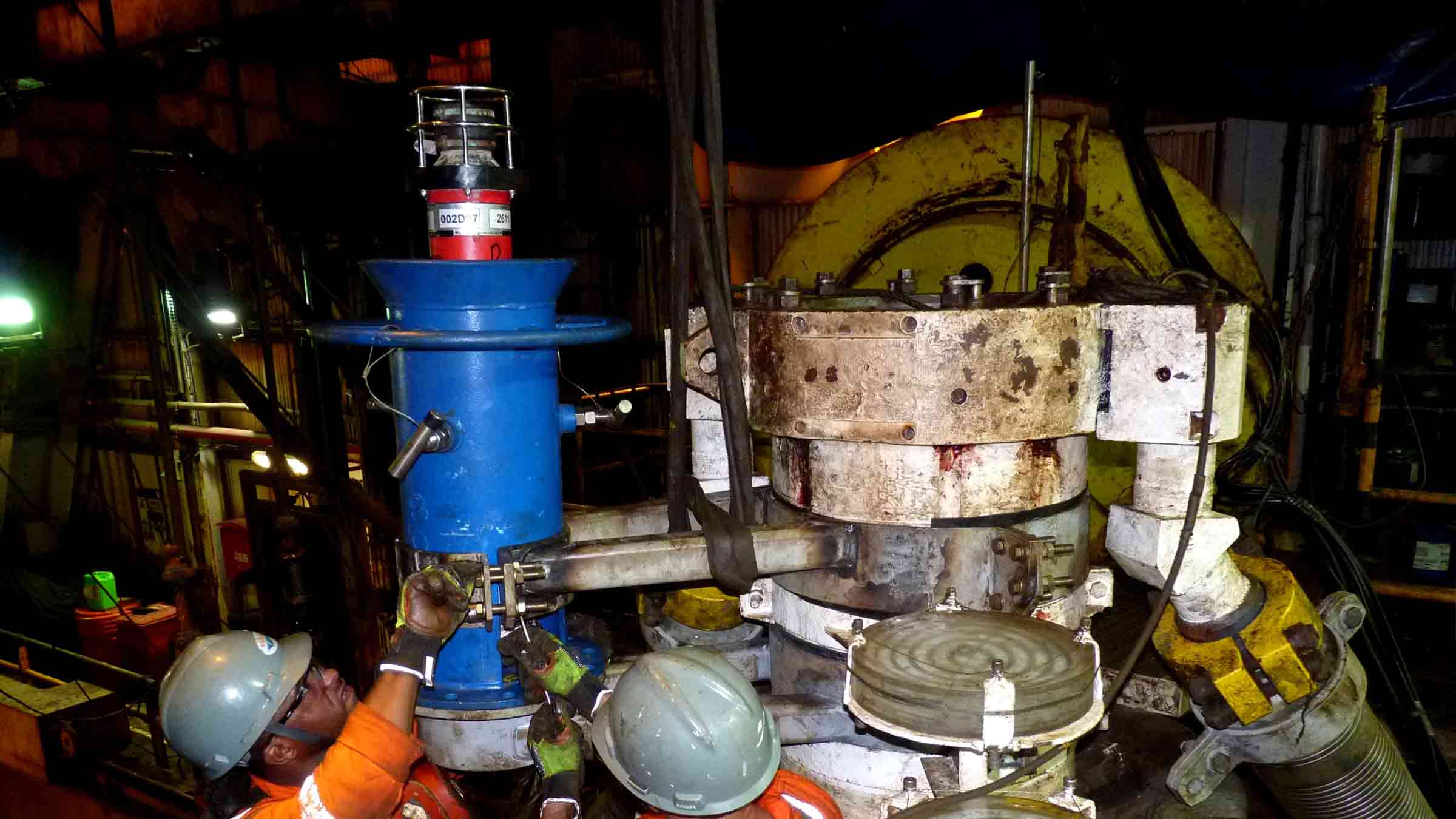

Emergency BOP control and tracking

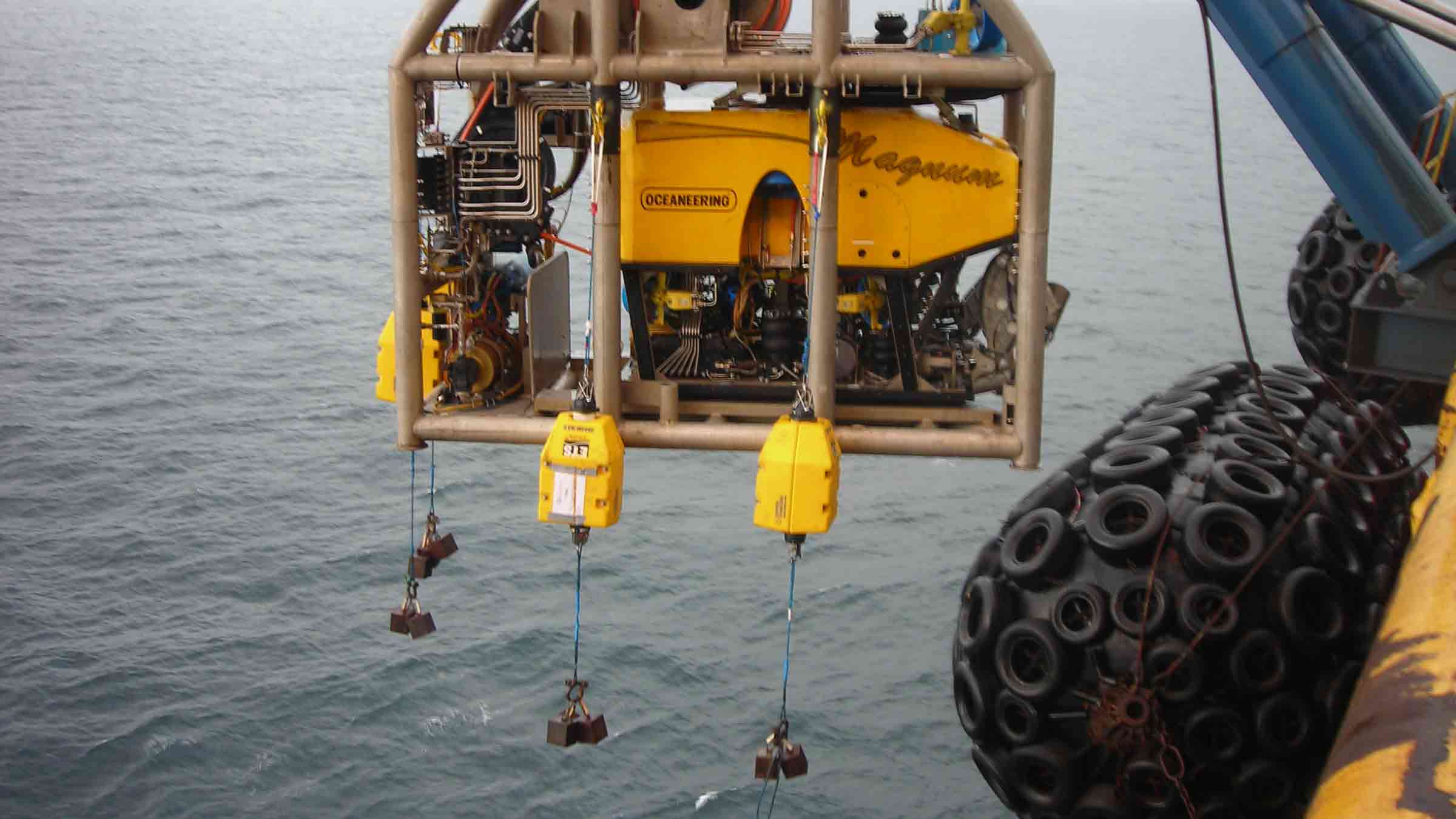

Marksman also supports acoustic riser angle monitoring, back-up acoustic control of blow out preventers (BOP) and acoustic command, control and data recovery for instruments used to monitor riser integrity. It can also and simultaneously track ROVs working in the vicinity of the vessel.

6G and Wideband 2
Marksman is engineered around our Wideband 2 and 6G technology platforms, providing valuable benefits for your operations. The digital acoustic signal architecture of Wideband 2 offers fast, robust transmission of data, precise ranging and greater immunity to vessel and ROV noise and interference from other acoustic systems.

6G hardware is simple and intuitive to operate allowing users to quickly gain confidence and thereby reducing risk. Transponders are easier to set up and enable faster and more efficient solutions for applications such as structure tracking, BOP control and autonomous monitoring. Long battery life enables seabed reference transponders to be semi-permanently deployed, reducing the need for intervention to replace batteries.

Why invest

Design

  • Works with all makes of DP system; GE, Kongsberg, MT, Navis and Wärtsilä

  • Can be configured for DP2 and DP3 class vessels

  • Dual and triple (INS) independent equipment configurations available

  • Suitable for new build and retrofit installations; drillships, semi-subs, heavy lift, well intervention

Performance

  • 7,000 m operating range

  • 1 second position update rate (dependent upon water depth)

  • Supports tracking of one surface and multiple subsea targets

  • DP telegrams; all industry standard supported

Technology

  • Compatible with all 6G vessel and subsea transceivers and transponder

  • Wideband 2 signal processing ensures robust acoustic performance in noisy environments

  • Long battery life; 6G transponders use low power electronics to extend battery life

  • Hundreds of unique operating channels enable simultaneous operations in busy offshore areas

Additional capabilities

  • Riser profiling (requires additional hardware and software)

  • Riser angle monitoring (requires additional hardware and software)

  • Recovery of data from Sonardyne seafloor sensors

Resources

Marksman System Performance LUSBL Tracking USBL Tracking
Water Depth LBL Array Radius Expected Repeatability Expected Repeatability
1000 m 175 m 0.16 m 1.5 m
2000 m 350 m 0.17 m 2.9 m
3000 m 525 m 0.39 m 5.1 m

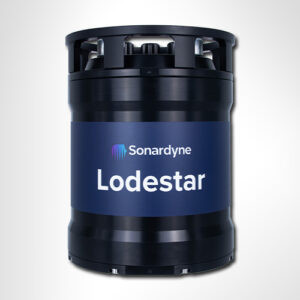

Expected repeatability values are 1 drms assuming quiet vessel (84 dB//μPa.m) with standard size USBL transceiver at centre of an array of 5 directional beacons, correct sound speed, rigid deployment and Lodestar AHRS.
Number of Targets Tracked 1 surface, unlimited subsea
Position Update Rate 1 second, dependent upon water depth
Gyro Data Formats NMEA HDT, SG Brown (ASCII, BIN), Robertson SKR82
VRU Data Formats SON2, TSS1, TSS2, EM1000, EM3000, PRDID
GPS Data Formats GPGGA, GPGLL
