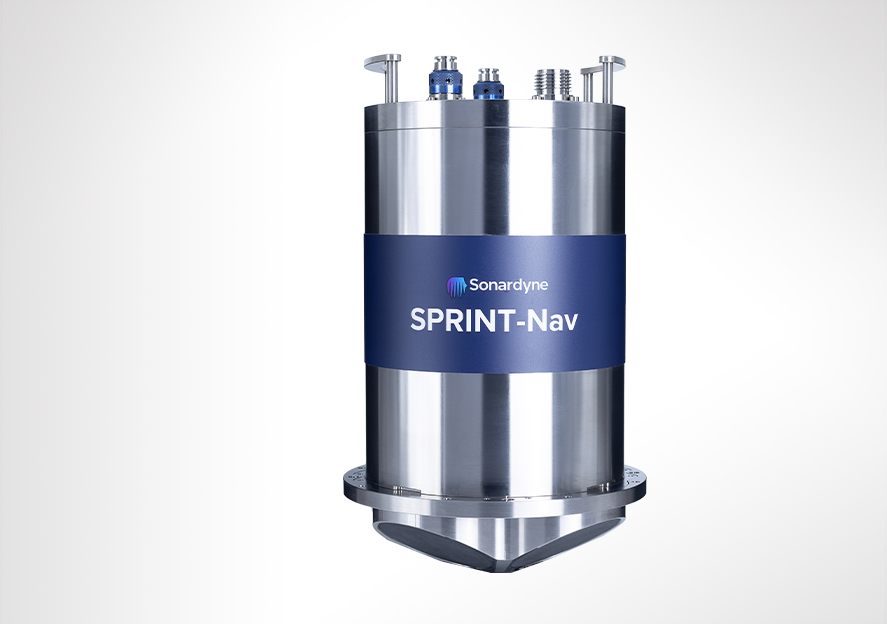

SPRINT-Nav F & FX, the latest two additions to the family, push the envelope of what’s possible. Marine robotic vehicles are going further, deeper, and are being deployed for longer missions, demanding more from their navigation systems. Whether operating in GNSS-denied surface environments or running subsurface missions where acoustic aiding sensors aren’t available.
SPRINT-Nav F and FX have been specifically designed to address the most challenging missions. Building on everything that made our SPRINT-Nav X the benchmark for high-performance subsea navigation.
SPRINT-Nav F’s inertial navigation system delivers 1 nautical mile of accuracy over 24 hours. SPRINT-Nav FX pushes that even further, maintaining position accuracy to within 1 nautical mile over 72 hours. That’s three days of transit or operation with your position held to within a nautical mile, without a single aiding update.
SPRINT-Nav F and FX keep the same optimised form factor, diameter, mounting options and connectors you already know from across the SPRINT-Nav family. They also share the same API and Web UI, built on our common electronics and software platform. If you’ve integrated one SPRINT-Nav, you’ve integrated them all.
\ Fusion 2: As part of the SPRINT-Nav family, F & FX can be used in Fusion 2 for range aiding and complex missions.
\ Janus: All SPRINT-Navs come with Standard Janus to analyse your and improve your mission’s data. Janus Pro to takes your data even further, significantly improving performance.
\ API integrations: Our flexible API enables SPRINT-Nav to be deeply embedded in your control or survey system.

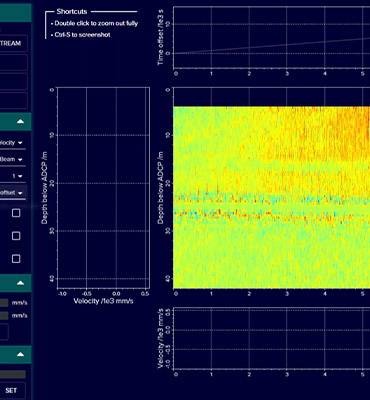

\ Origin Viewer: ADCP is a core competency of SPRINT-Nav. Record and view motion and velocity corrected ADCP data in Origin Viewer.
• Unrivalled free-inertial performance for its size
• Optimised for size, weight and power
• Powered by our class-leading SPRINT hybrid navigation engine
• More compact and cost-effective than four separate sensors
• Gyrocompass simplicity, hybrid acoustic-inertial performance
• Factory calibrated, ready to run
• 225 x 396 mm, 11.6kg in water
• Titanium housing construction
• Onboard data storage and battery backup
• Individually water blocked and replaceable DVL transducers
• In field remote performance upgrades
• 24 or 72 hours unaided performance to 1 nautical mile of error
• Provides 0.01% typical survey accuracy
• Heading accuracy 0.01° secant latitude
• Provides 0.04% distance from origin accuracy
• 0.01° pitch/roll accuracy
• Station keeping <2m over 24 hours, provides bottom lock up to 175 m
• Up to 100 Hz output rate
• 5 minute alignment with DVL
• Warranty: 1 year return to Sonardyne service centre
• ITAR controlled: No
• UK export licence: Yes
• What’s in the box: SPRINT-Nav F, embedded web UI, Fusion 2, Origin Viewer, Janus standard software and test lead
| Performance | SPRINT-Nav F | SPRINT-Nav FX | |
|---|---|---|---|
| DVL aided | Typical survey | 0.01% | 0.01% |
| Distance from origin | 0.04% | 0.04% | |
| Station keeping | <1 m over 24 hours | <1 m over 24 hours | |
| Unaided | Short term | 0.3 m in 60 s | 0.3 m in 60 s |
| Long term | 1 nm in 24 hours | 1 nm in 72 hours | |
| Altitude min/max | 0.3/175 m | 0.3/175 m | |
| USBL/GNSS & DVL aided | Precision improvement | Up to 13x better | Up to 13x better |
| LBL/DVL aided | 3 cm confined area, 20 cm wide area (dynamic) | 3 cm confined area, 20 cm wide area (dynamic) | |
| Heading (Secant latitude) | with GNSS or USBL and DVL | 0.01º | 0.01º |
| with GNSS or USBL or DVL | 0.01º | 0.01º | |
| AHRS/INS roll and pitch | 0.01º | 0.01º | |
| Heave | 5 cm or 5% | 5 cm or 5% | |
| Pressure sensor | 0.01% FS | 0.01% FS | |
| ADCP | Profiling range | 0.4–80 m | 0.4–80 m |
| Velocity range and RMS (along beam) | Up to ±5.6 m/s ±0.4% of measured value | Up to ±5.6 m/s ±0.4% of measured value | |
| Maximum number of cells | 255 | 255 | |
| Maximum ping rate | 4 Hz (ADCP) or 20 Hz (DVL) | 4 Hz (ADCP) or 20 Hz (DVL) | |
| Power | |||
| Power requirements | DVL off | 24 V dc ±10%, 15 W nominal, 35 W maximum | 24 V dc ±10%, 15 W nominal, 35 W maximum |
| DVL on and battery fully charged | 24 V dc ±10%, 25 W nominal, 35 W maximum | 24 V dc ±10%, 25 W nominal, 35 W maximum | |
| Internal battery backup | Li-ion/5 minutes | Li-ion/5 minutes | |
| Physical/comms | |||
| Data storage | 64 GB internal memory | 64 GB internal memory | |
| Serial ports/protocol | 3x RS232 or RS485 | 3x RS232 or RS485 | |
| Other ports | Ethernet, 4 triggers | Ethernet, 4 triggers | |
| Mechanical construction | Titanium | Titanium | |
Dimensions (diameter x height)
(incl. connectors and mounting ring) |
6,000 m | 225 x 396 mm | 225 x 396 mm |
| Weight air/water | 6,000 m | 22.75 kg/11.6 kg | 22.75 kg/11.6 kg |
| Environmental | |||
| Depth rating | 6,000 m | 6,000 m | |
| Operating temperature | -5 to 50°C | -5 to 50°C | |
| Storage temperature | -25 to 55°C | -25 to 55°C |
