Overview

Nano. Our smallest ever USBL transponder.

Dive into underwater exploration with Nano. Nano transponder is our smallest ever USBL transponder capable of being used within our Ranger 2 USBL family. Suitable for AUV, ROV and diver operations, as well as custom integration with our OEM model. Whether you’re conducting environmental surveys, engaging in coastal science or military operations, Nano’s unmatched reliability and performance keeps you connected and in control beneath the waves.

Overview

Nano operates in the Medium Frequency (MF) band, so it’s compatible with our family of Ranger 2 USBL topside systems; Micro, Mini and Standard.

Measuring in around 160 mm in length, 55mm in diameter and weighing in at under 200 grams in water – depending on the exact version you’re using – Nano is small enough to fit on the smallest of vehicles and light enough for a diver to barely know they’re carrying one.

Nano’s built using the same signal technology platform you’ll find in our award-winning 6G product line – Wideband 2. So you can expect reliable acoustic communications in all operating environments, accurate position fixes and a continuous stream of location updates.

At a glance

2nd generation design, extended battery life and 500 m depth rating

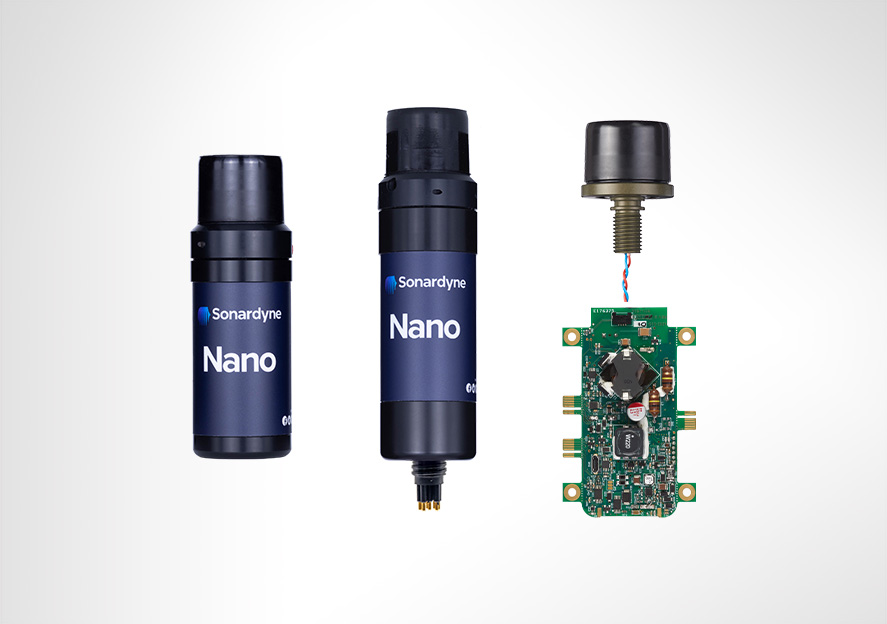

NFC, connector and OEM housing options
NFC version is just 160 mm long by 55 mm in diameter. USBL transponders don’t get much smaller than this
Depth rated to 500 m

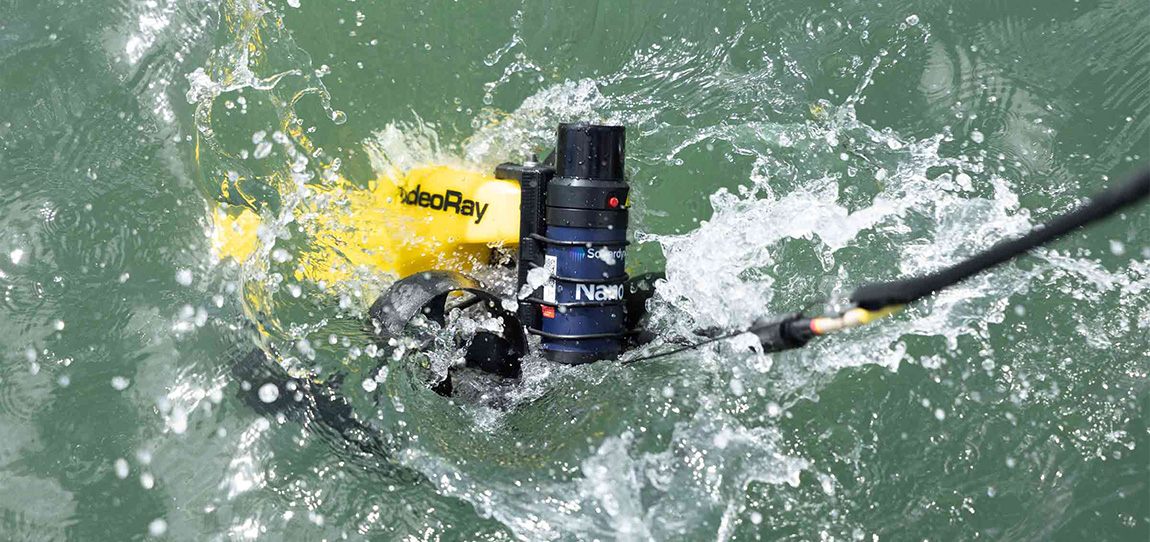

Easy to fit to divers, ROVs, equipment and AUVs

Nano features a 90-day quiescent battery life, ideal for long-term deployments and recovering lost assets. Nano’s battery lasts up to 12 hours, even when being actively tracked with one second position update rate.

The NFC Nano features a unique connector-less design that is recharged and programmed via the Nano Docking Station. The NFC technology allows full configuration of the Nano whilst maintaining its rugged “strap on and go” form factor.

The cabled Nano features an industry standard Subconn connector allowing the Nano to be permanently powered, and can also be used in Responder mode.

When purchasing a Micro-Ranger 2 USBL system, we include two Nanos as standard. You’re able to choose between the NFC or connector version at no additional cost.

For vehicle programs and integrators, the Nano OEM when paired with an OEM transducer provides all the functionality of the housed transponders, in a form factor that can be mounted in any system.

Nano has an inbuilt depth sensor and is a 500 m depth rated unit.

Performance

500 m depth rated
995 m slant range
12 hours battery life (at 1 second update rates)
90-day listening life

6G

Our 6th generation (6G) technology provides faster, secure and robust data communications from seabed to surface. This gives you speedier updates on the location of your assets and access to your vital data.

Wideband

Our wideband technology enables digital high-throughput data, range resolution and accuracy with low latency. Teamed with our 6G it gives you fast, reliable, accurate data over greater distances.

Design

160mm x 55mm, 149 grams weight in water (NFC version)
192mm x 55m, 162 grams weight in water (connector version)
Credit card sized OEM version available
Polymer housing construction. Lightweight and robust. ROHS compliant.

Specifications table

Feature		Type 8262 Nano NFC	Type 8262 Cabled	Type 8262 Nano OEM
Operating Range		995 m	995 m	2,000 m
Depth Rating		500 m	500 m	n/a
Transducer Depth Rating		n/a	n/a	3,000 m
Operating Frequency		MF (20–34 kHz)	MF (20–34 kHz)	MF (20–34 kHz)
Transducer Beam Shape		Omni-directional ±130º	Omni-directional ±130º	Omni-directional ±130º
Source Level (re 1 µPa @ 1 m)		184/175 dB	184/175 dB	175 dB
Range Precision		Better than 15 mm	Better than 15 mm	Better than 15 mm
Communication Interface		USB in dock	RS232, 3V3 TTL	RS232 (2,400–115,200 baud), 3V3 TTL
Depth Sensor		50 bar abs +/-0.7% FS	50 bar abs +/-0.7% FS	50 bar abs +/-0.7% FS
Power Supply		USB dock	12–28 V dc	12–28 V dc
Power Consumption	Wideband Listening (Battery)	n/a	5 mW	5 mW
	Wideband Listening (Ext. Power)	n/a	20 mW (including trickle charge)	20 mW (including trickle charge)
	Battery Charging	n/a	60 mW to 2.5 W (depending on battery charge state)	60 mW to 2.5 W (depending on battery charge state)
	Peak (During Transmission)	n/a	<30 W SMS, <20 W Modem	<30 W SMS, <20 W Modem
Battery Life	Quiescent Listening	>90 days	>90 days	>90 days
	1 Sec Ping Rate	>12 hours	>12 hours	>12 hours
Battery Charge Time		12 Hours	12 Hours	12 Hours
External Connections		n/a	Subconn MCIL8M	Molex Microfit
Mechanical Construction		Polymer	Polymer	n/a
Transducer Wire Length		n/a	n/a	150 mm (6”)
Operating Temperature		-10 to 45°C	-10 to 45°C	-10 to 45°C
Storage Temperature		-20 to 55°C	-20 to 55°C	-20 to 55°C
Dimensions	Length x Diameter	160 x 55 mm	192 x 55 mm	n/a
	Transducer (Length x Diameter)	n/a	n/a	72 x 49 mm
	PCB Board Assembly (Length x Width x Height)	n/a	n/a	95 x 43 x 42.5 mm
	Hole Centres (M2 clearance – Length x Width)	n/a	n/a	71.5 x 35 mm
Weight in Air/Water		486/149 g	584/162 g	n/a
Weight (OEM)	PCB in Air	n/a	n/a	138 g PCB + 12 g cable
	Transducer in Air/Water (Estimated)	n/a	n/a	200/150 g
