Pressure Inverted Echo Sounder
Engineered for: Seabed
Pressure Inverted Echo Sounder (PIES) is a long-life sensor logging node that accurately measures the average sound velocity through a column of water from the seabed to the sea surface.
At a glance
Use it to measure average sound speed in the water column
Developed for marine seismic and ocean science applications
Harvest data using ROV, AUV, ASV or surface vehicle
Integrated acoustic release for easy recovery at conclusion of survey
Depth ratings to 6,000 m
Choice of form factor to suit your concept of operations
Delivering insight for your surveillance surveys
Want to know more?
PIES is built on our 6G instrument platform with a global track record of reliability
A telemetry link allows recorded data to be transmitted to surface at data rates ranging from 100 to 9,000 bits per second
Average water column velocity is calculated directly from the depth and travel time data, noting that speed = distance / time

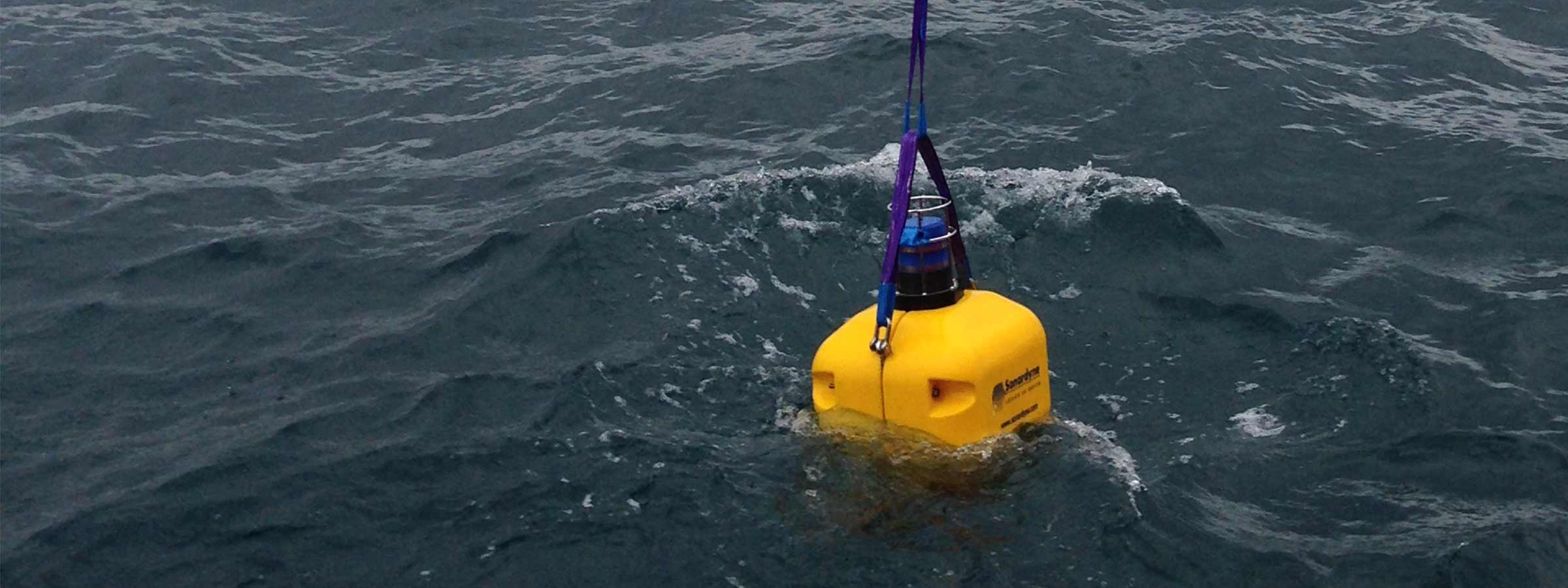

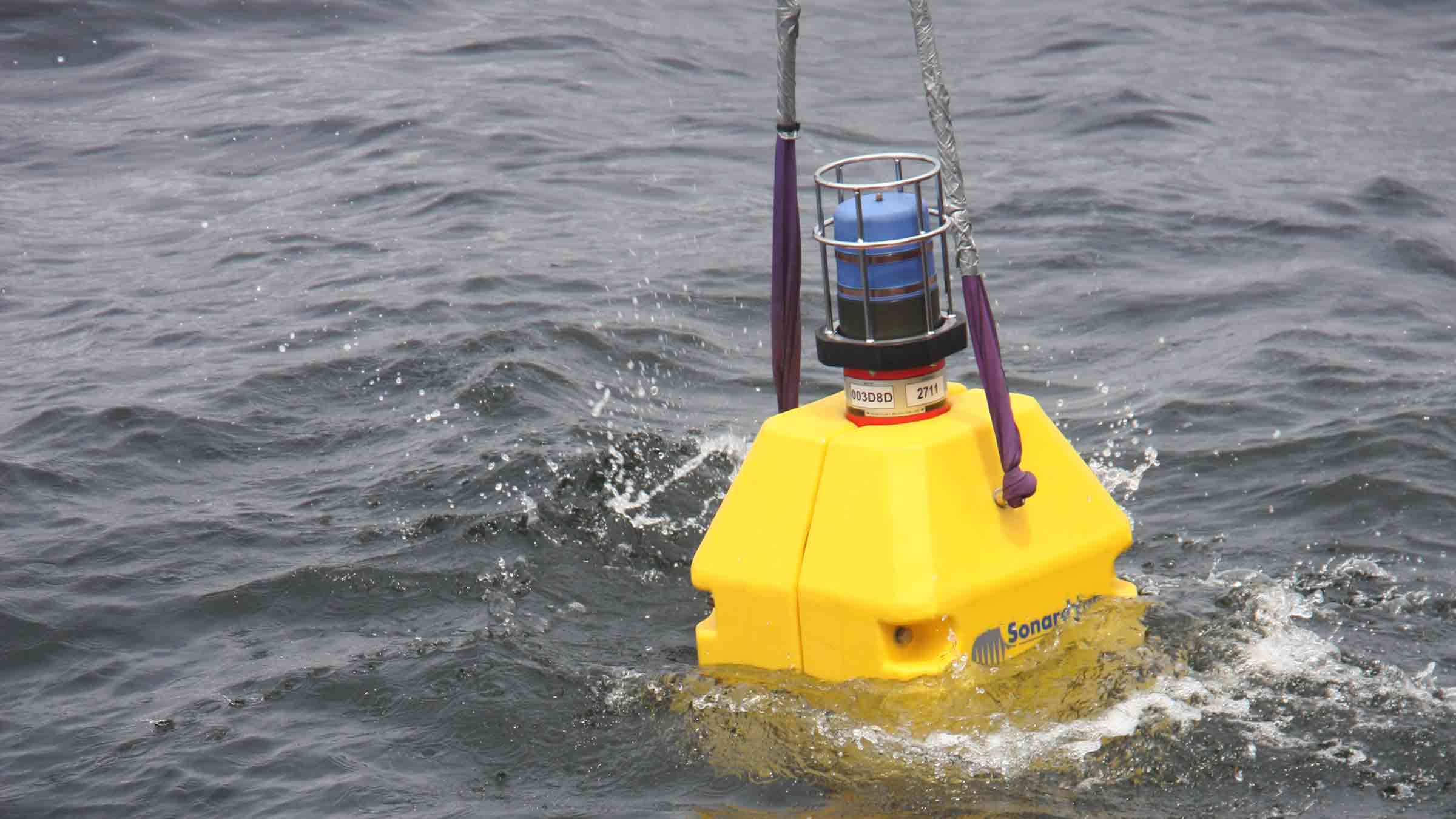

Both versions of PIES feature an integrated acoustic release for simple recovery
Benefit of PIES for your applications
Monitor for months or years - PIES is engineered for sustained observation campaigns and can be deployed for up to five years.
PIES helps oceanographers and geophysicists to better understand the physical processes that occur in the deep ocean, guiding policy and operational decisions.
Data on demand

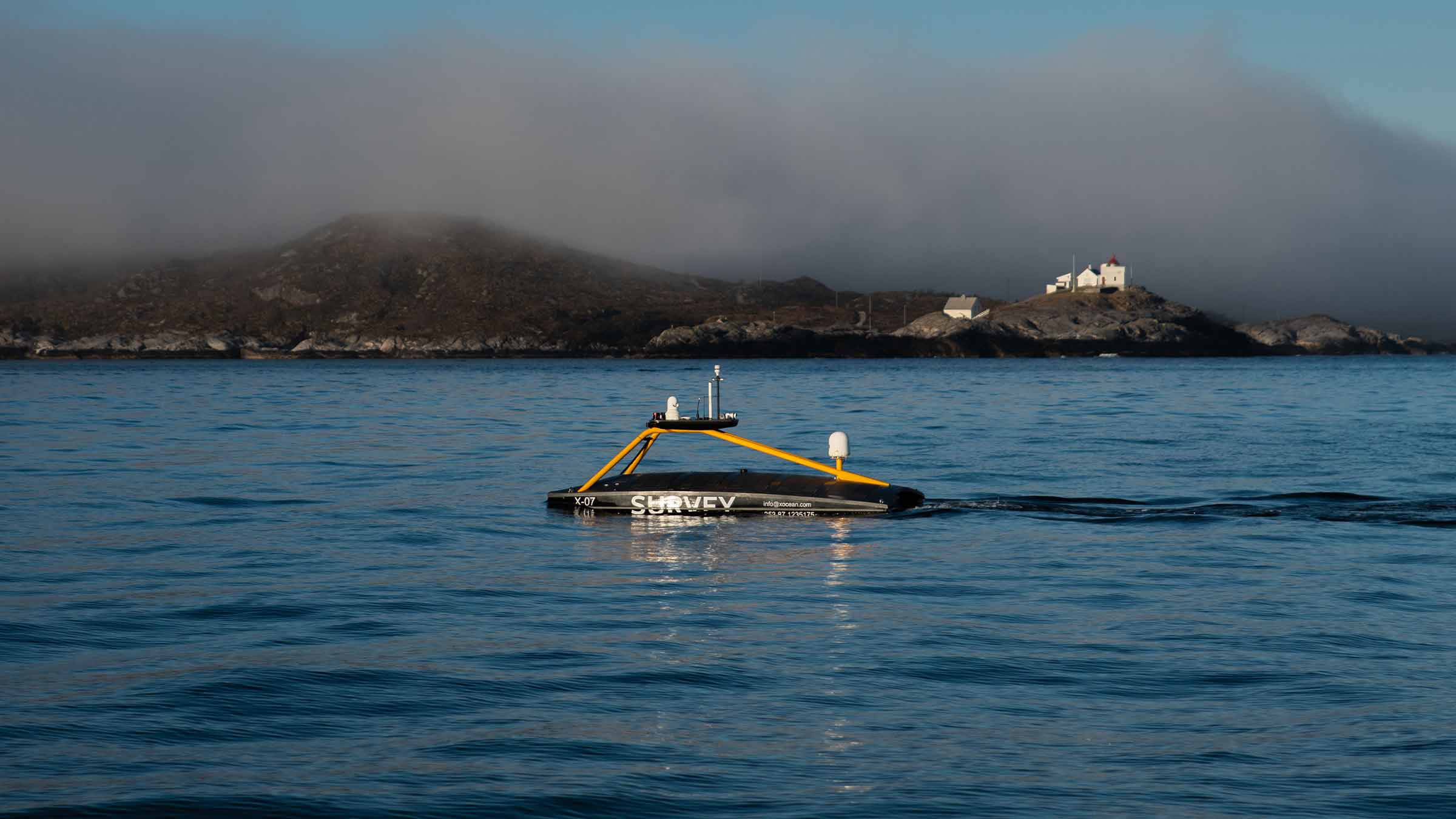

Harvest your data when you want, how you want using an uncrewed surface vessel to lower your costs and reduce emissions.
PIES is a long endurance oceanographic instrument for precisely measuring average sound speed in the water column.
The instrument has been developed for marine seismic and ocean science applications to gather valuable physical oceanography data. PIES can be configured for autonomous monitoring over periods of several months or years. One key operational advantage for users is that minimal conductivity and temperature profiling is needed over the seismic survey period.

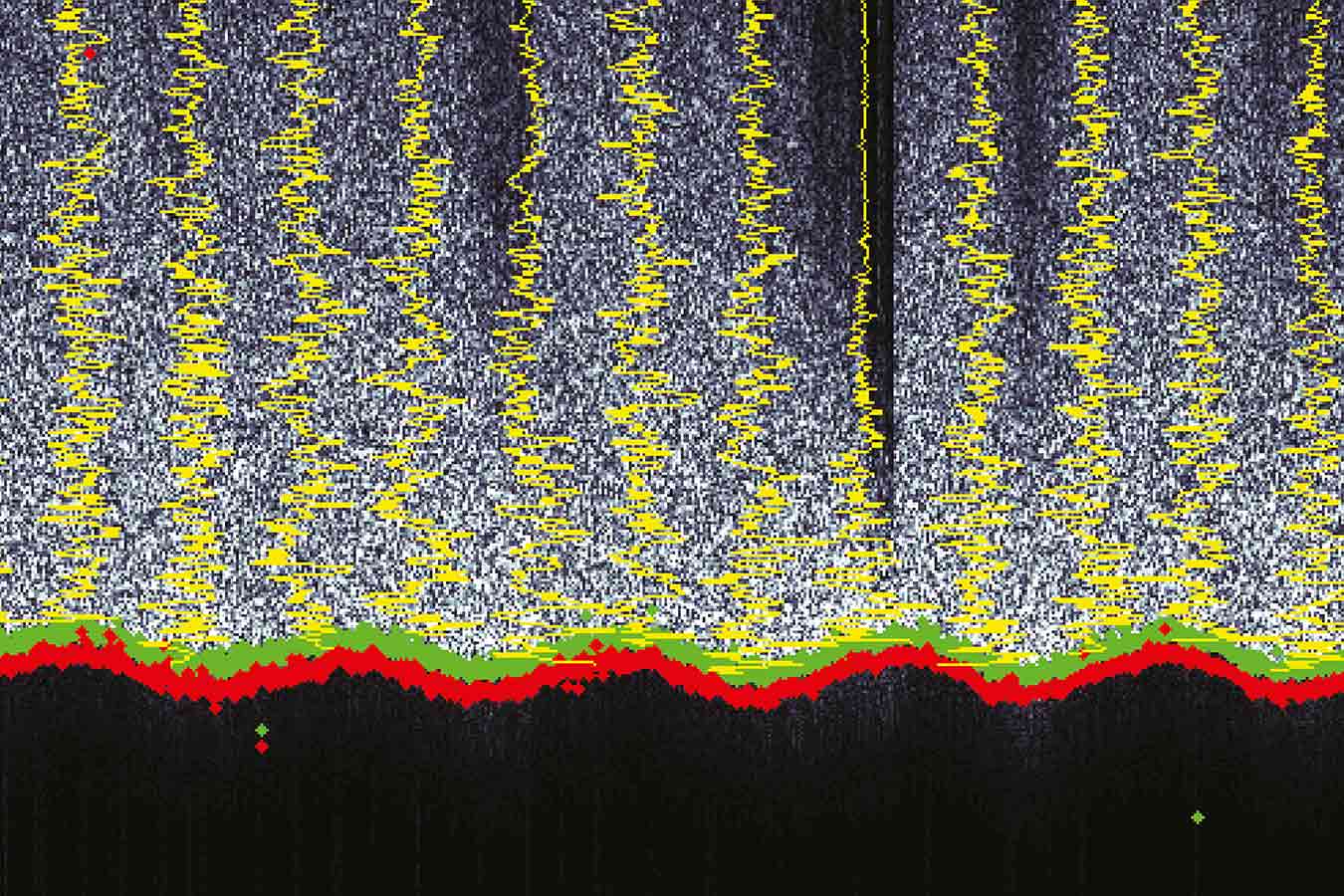

PIES uses an up chirp to accurately measure two-way travel time through the water column. It simultaneously measures pressure at the seabed. Pressure measurements are converted to depth to find the acoustic distance travelled from the seabed to the surface and back again. By combining the depth and travel time, the average sound speed in the water column can be calculated.
An embedded acoustic modem allows you to retrieve via USV or crewed vessel. Alternatively, the PIES unit can be retrieved to the surface. The SD card extractor software gives you access to the raw data gathered by the instrument. Accurate conversion from pressure to depth can be achieved by allowing you to include local barometric pressure, seawater density and gravity with the PIES data.
A PIES unit is user-configurable to capture at a programmable ping rate ranging from one minute to many minutes or even hours. The choice of ping rate enables you to balance the conflicting demands of battery life with the need to average out effects from the instantaneous sea state at the time of acoustic measurement.
Although data can be harvested at any time without recovering the instrument – using a vessel-of-opportunity or uncrewed surface vessel equipped with a Sonardyne modem-enabled instrument – logged data is typically retrieved once the survey is completed and the PIES unit is recovered on the surface.
PIES data is retrieved using the SD Card Extractor software and the raw measurements are post-processed with geophysical data. The set-up for the SD Card Extractor is partially automatic and can detect the current baud rate, minimising the time spent completing the extraction process.
Integrated modem with data rates ranging from 100 to 9000 bps
LMF (14–19 kHz) operating frequency
190–202 dB (4 Levels) Transmit source level
80–120 dB (7 levels) Receive sensitivity
Easy to set up with configuration and sampling period programmable via telemetry link

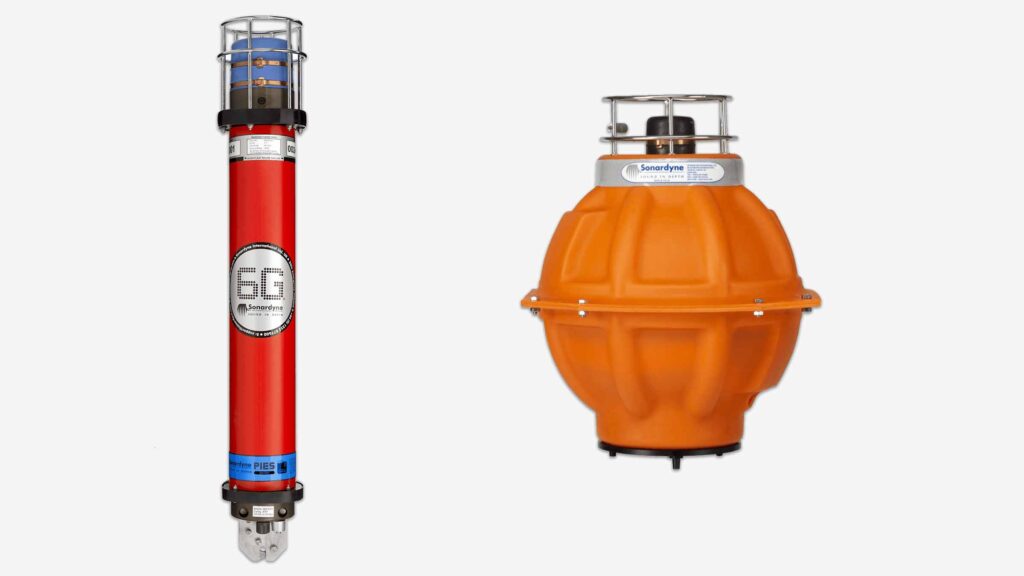

Glass sphere or hard anodised aluminium housing options
Customisable sensor payload options
3,000 or 6,000 m depth rated
Up to five year deployment life
Vessel, USV or AUV data harvesting options
Anti-trawl fame option available
Warranty: 1-year return to Sonardyne service centre
ITAR Controlled: No
UK Export License: Not required
PIES case studies
Measuring Mount Etna – an underwater monitoring first
A network of our instruments deployed by scientists from GEOMAR Helmholtz for 15 months has measured underwater slippage of the southeast flank of Europe’s most active volcano, Mount Etna, for the first time. Read more here.
Client: GEOMAR Helmholtz Centre for Ocean Research
GPS-Acoustics unlock a new approach to seabed geodetics
Guest authors, Liquid Robotics, take a closer look at seafloor geodesy, an emerging scientiﬁc ﬁeld that is making the real-time study of continental plate tectonics a cost-effective and viable option.
Guest Author: Liquid Robotics
6G modems make the connection between data and decisions
Learn how RPS Ocean Science used our modem technology to measure seabed current proﬁle data at the Walker Ridge area in the Gulf of Mexico, and wirelessly transmit the observations to the surface for instant analysis.
Client: RPS Ocean Science
Long endurance monitoring of tectonic motion
On land, GPS and laser observations enable precise geodetic measurements. Until recently, the inability to undertake cost-effective complementary subsea has not been possible. Read how GEOMAR Helmholtz have been using our monitoring technology to measuring tectonic plate movements.
Client: GEOMAR Helmholtz Centre for Ocean Research
|Feature||Type 8302-3116||Type 8306-3816|
|Depth Rating||3,000 or 6,000 m||3,000 or 6,000 m|
|Operating Frequency||LMF (14–20 kHz)||LMF (14–20 kHz)|
|Transmit Source Level (dB re 1 µPa @ 1 m)||190–202 dB (4 levels)||190–202 dB (4 levels)|
|Receive Sensitivity (dB re 1 µPa)||80–120 dB (7 levels)||80–120 dB (7 levels)|
|Battery Life (Capacity)||Multi-years life, dependent on sensors and sampling interval (100 Ahr)||5 years life (dependent on sensors and sampling interval (180 Ah)|
|Mechanical Construction||Hard anodised aluminium housing, duplex stainless steel guards||Glass sphere, galvanised stand, duplex stainless steel guards and connectors|
|Weight in Air/Water||Fetch||30.6/16.1 kg||43/-10 kg (upthrust buoyancy)|
|Tilt Switch (±30–45°)||Standard||Standard|
|High Precision Strain Gauge (±0.01%) Keller or Presens||Optional||Optional|
|Paroscientific DigiQuartz Pressure Sensor (±0.01%) 1,350 m, 2,000 m, 4,130 m, 6,800 m||Standard||Standard|
|High Accuracy Inclinometer Range: ±90° Accuracy: ±0.05° over 0–±15°; ±0.2° over 0–±45°||Optional||Optional|
|Sound Velocity Sensor ±0.02 m/s Accuracy Under Calibration Conditions||Optional||Optional|
|External Sensor Options Turbidity, Conductivity, ADCP||n/a||Optional|
|Release Mechanism (Screw-off)||Standard||Standard|
|Connector Type||Subconn MCIL8M||Impulse MCIL-8-MP|
|(See Compatt 6 and AMT datasheets for more information)|
