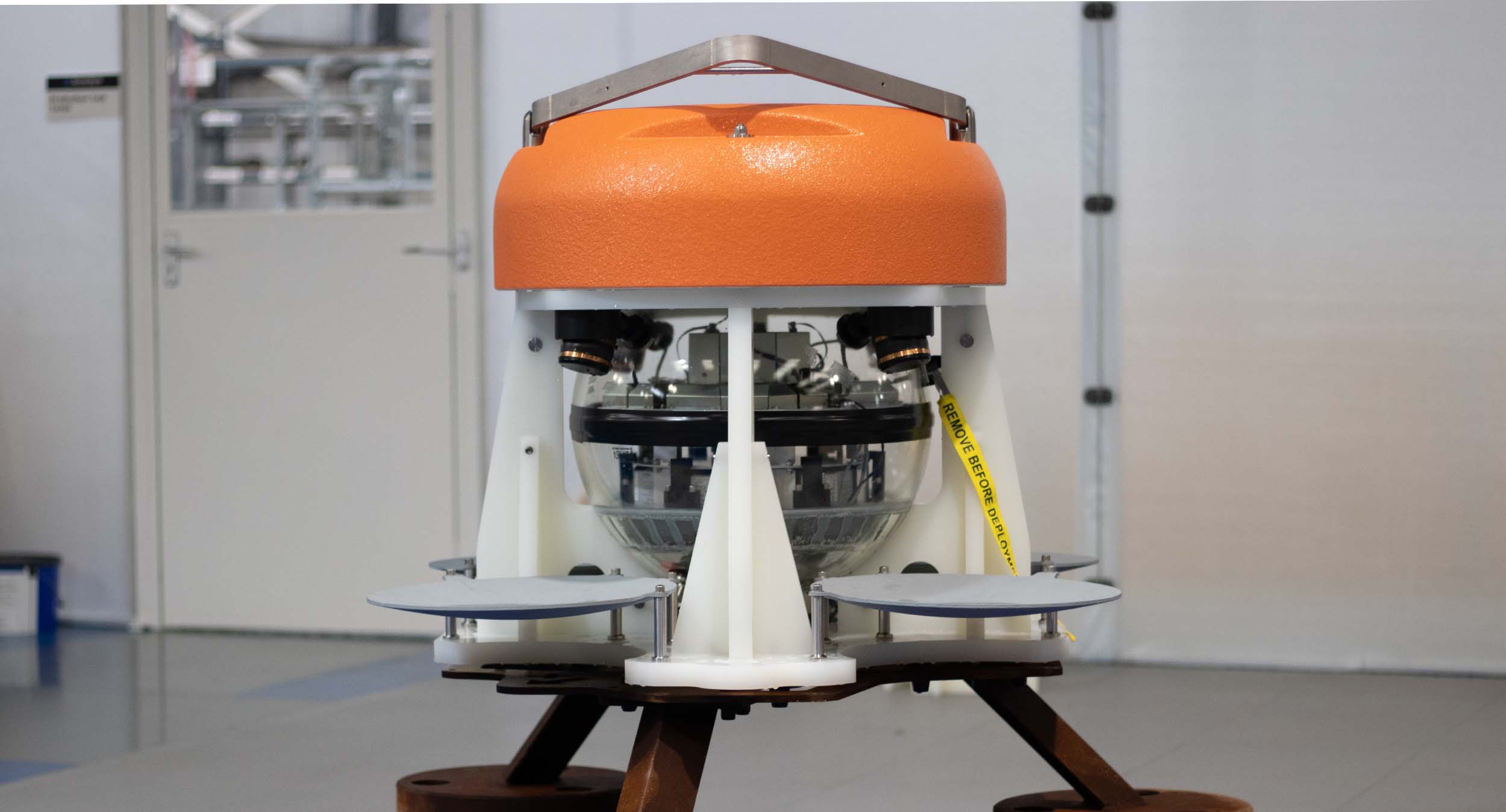

Origin 65 ADCP

Deep Water Acoustic Doppler Current Profiler

Engineered for: Seabed

Origin 65 revolutionises what is possible with a deep water ADCP. It combines state-of-the-art acoustics, sensors, and data into one payload that opens up an unprecedented view of the deep. It's a versatile, reliable and high performance ADCP with on-board Edge processing for data optimisation and an integrated modem for remote control and data access.


At a glance

All-in-one unit ADCP with integrated modem

Integrated Pressure Inverted Echo Sounder – for accurate two-way travel time data

Built-in release – for free fall deployment and recovery

Ranger 2 USBL compatible

3rd party sensor integration and data fusion

Edge processing – for customised and optimised data

High resolution proprietary data formats: A-gram and B-gram

Discover our Origin story

Want to find out more?

Reduced risk

Remote, safe and low-cost Data: Edge customised and optimised data can be harvested acoustically with a small and efficient USV to reduce overall ship time, human intervention and associated risk.

Robust design

Robust and reliable hardware: It is less vulnerable to pressure cycling thanks to its novel acoustic design that combines small depth-rated piston transducers with steel acoustic reflectors.

Operational flexibility

It can support short-term and long-term current monitoring projects, free fall deployment and released recovery, and you can use our Ranger 2 systems to harvest data for actionable insights during monitoring periods.

Overview

An innovative, robust acoustic design

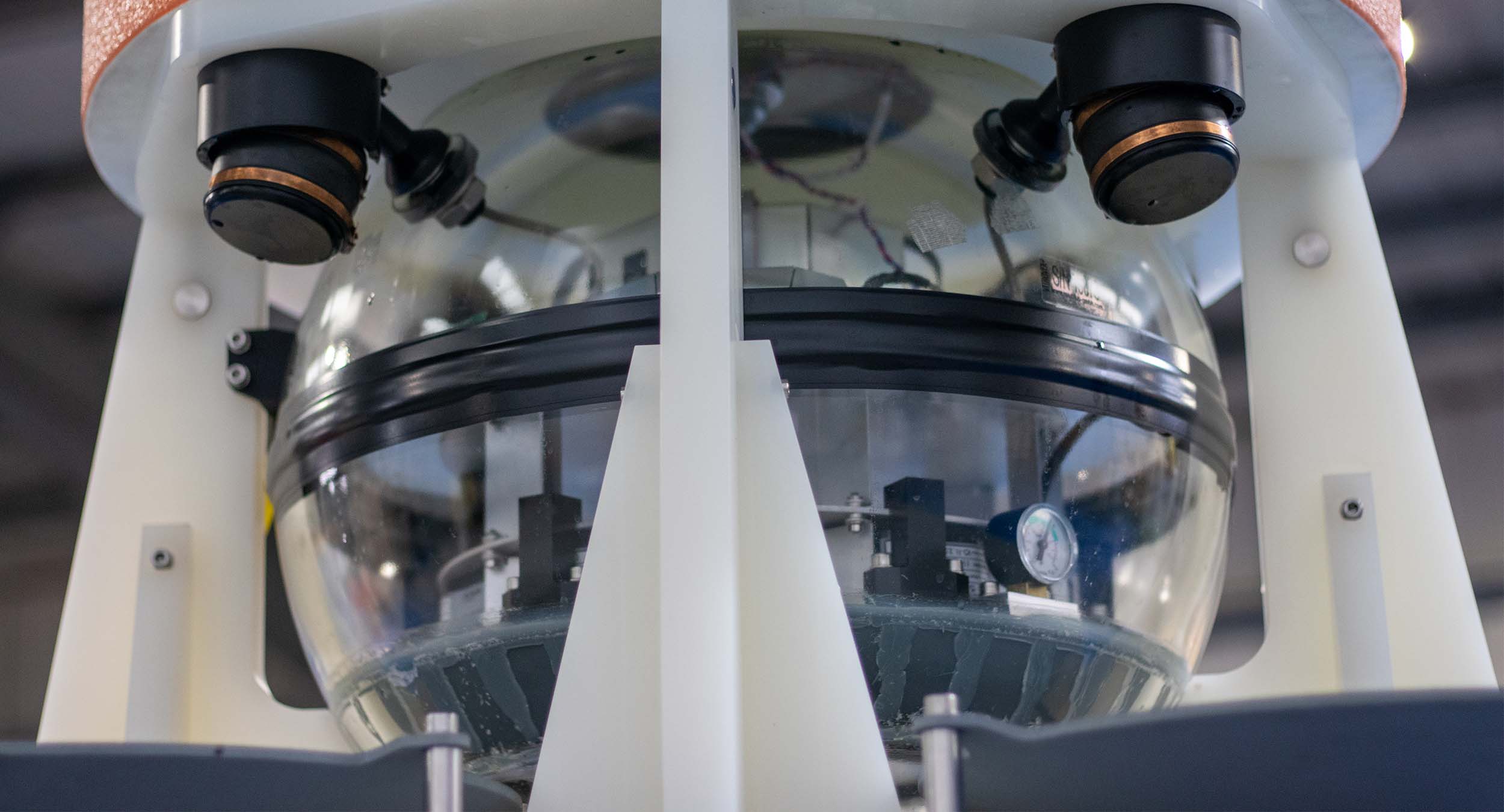

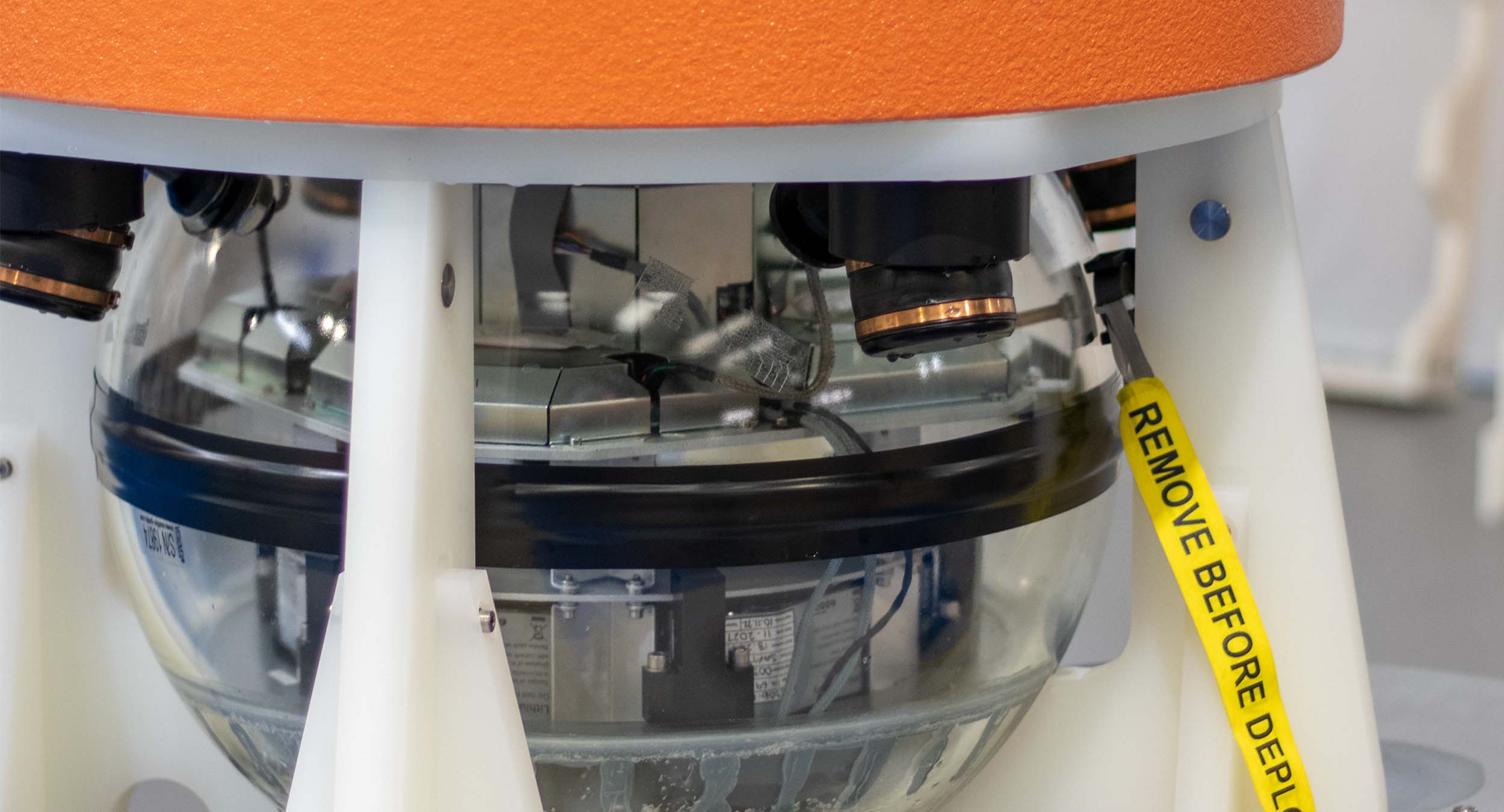

Origin 65 ADCP acoustics use a satellite-dish design. This allows Origin to match or exceed the acoustic performance of competing instruments, while reducing cost, prolonging battery life, and increasing robustness to pressure cycling – a long-standing problem with low-frequency ADCPs. Origin 65 is depth rated to 4,500 m and can deliver for your operations again and again.

Connect to the subsea world – integrated modem and PIES

The integrated modem allows Origin 65 to be queried and reprogrammed acoustically while deployed. During the measurement schedule, Pressure Inverted Echosounder (PIES) measurements are interleaved with current profiles. This allows time-of-flight (TOF) and average sound velocity (SV) to be determined in-situ alongside the ADCP sampling and the data fused in PD0, delivering all data time-aligned in one place. At the end of a deployment, the modem can be used to trigger the integrated acoustic release, allowing the device to float back to the surface for retrieval.

Origin ADCP – Edge enabled

Edge lets you run data processing applications on Origin 65 which are customised to your needs. The system will produce the information you are most interested in, rather than bulky raw data that would normally be processed once the device is recovered. You can harvest this data as a file or as a live stream, either through a cabled connection, or Origin 65’s integrated acoustic modem.

Edge computing enables the ability to write your own apps for Origin via our SDK. You can focus on the data you need from your applications. To get you started some of the apps already available include simple background currents and quality metrics.

More than just PD0 – introducing A-gram and B-gram

As default, Origin 65 produces the industry-standard PD0 data format. In addition, it can log our new and exclusive A-gram and B-gram proprietary formats. These offer up to ten times greater spatial resolution than PD0 and expose raw acoustic data for special applications. All data formats can be processed within the Edge computing environment, allowing for maximum onboard processing flexibility to suit a broad range of applications.

Why invest

Design

  • Innovative acoustic design

  • Onboard Edge processing

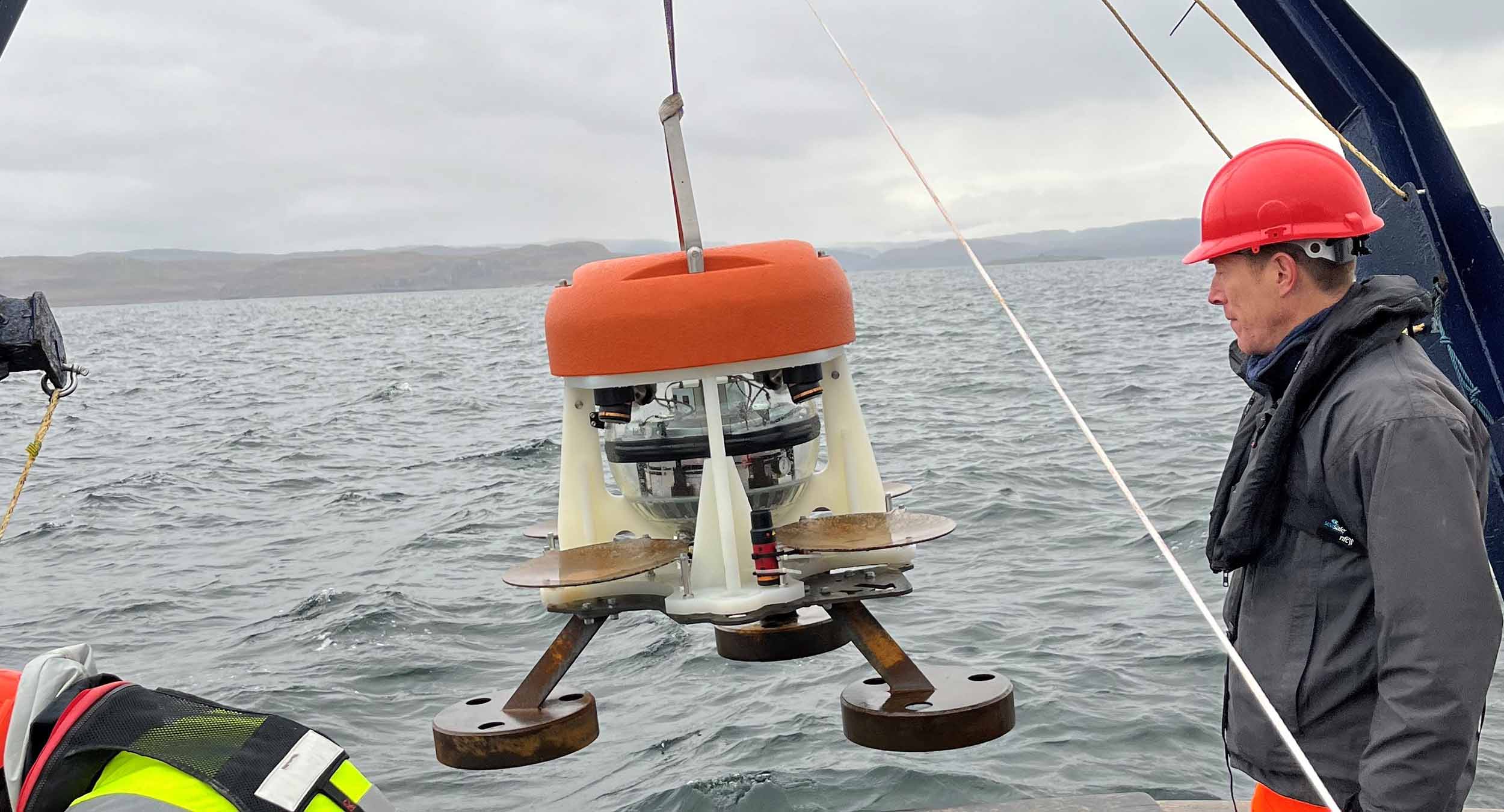

  • Free fall deployment and recovery

  • Supports post capture USV data harvesting

Performance

  • 800 m profiling range

  • Minimum cell size of 120 mm

  • Innovative software ecosystem

  • 4,500 m operational depth rating

Acoustics

  • 62.5 kHz operating frequency

  • Works with Ranger 2 USBL acoustics

  • LMF frequency modem (14-19 kHz)

  • Integrated acoustic release

Ownership

  • Comes with Origin Scheduler, Viewer, Portal and Topside software as standard

  • Works with your existing Ranger 2 USBL system

  • Warranty: 1 tear return to Sonardyne service centre

  • UK Export License: Yes

Resources

Features Type 8323
ADCP Operating frequency 62.5 kHz
Maximum profiling range 800+ m (depending on water environment)
Minimum cell size 120 mm
Minimum blanking distance 12 m
Velocity range (along beam) Up to ±2 m/s or 3.75 m/s user selectable
Velocity RMS 0.5% of measured value
Maximum number of cells 2,500
Maximum ping rate 1 Hz (4 beams)
Beam width/angle ±2 degrees / 20 degrees
Acoustic modem Operating frequency LMF (14–19 kHz)
Typical operating range 4,000 m
Sensors Temperature -5° to 35°C
Heading accuracy/resolution ±1°/0.1°
Pitch and roll accuracy/resolution and range ±1°/0.1° & ±90° (pitch), ±180° (roll)
Pressure (high precision) ±0.01%. 6,000 psi (4,100m depth) max. (higher rated options available on request)
Communication and logging Communications RS232, Ethernet and acoustic modem
Internal logging 1 TB internal memory
Output Output telegrams PD0, A gram, B gram; simultaneous output
Electrical External power PoE+, adapter included
Power 15 mW (sleep), 16 W (pinging), 20 W (fully active)
Disposable battery capacity 540 Ah dual battery; single and triple battery options available
Full/scheduled/standby lifespan 6 weeks/2 years/12 years
Environmental Depth rating 4,500 m operational (deeper rated options available on request)
Operating/storage temperature -5 to 40°C / -20 to 55°C
Mechanical Construction Glass, steel and plastic
Connector type Subconn: 8-way for power and comms
Dimensions (height x max diameter) 1110 mm x 1306 mm x 1324 mm
Weight in air/water 230/25 kg (excluding stand 170/-21 kg)
Software Origin Portal Embedded Web UI for control and configuration
Origin Scheduler Schedule planning and configuration tool
Origin Viewer File data inspection
Origin Topside Remote configuration and control over acoustic modem
