Products Instruments & Software

Marine Computer

Industrial PC (Rack mountable)

Engineered for: USV, Vessel

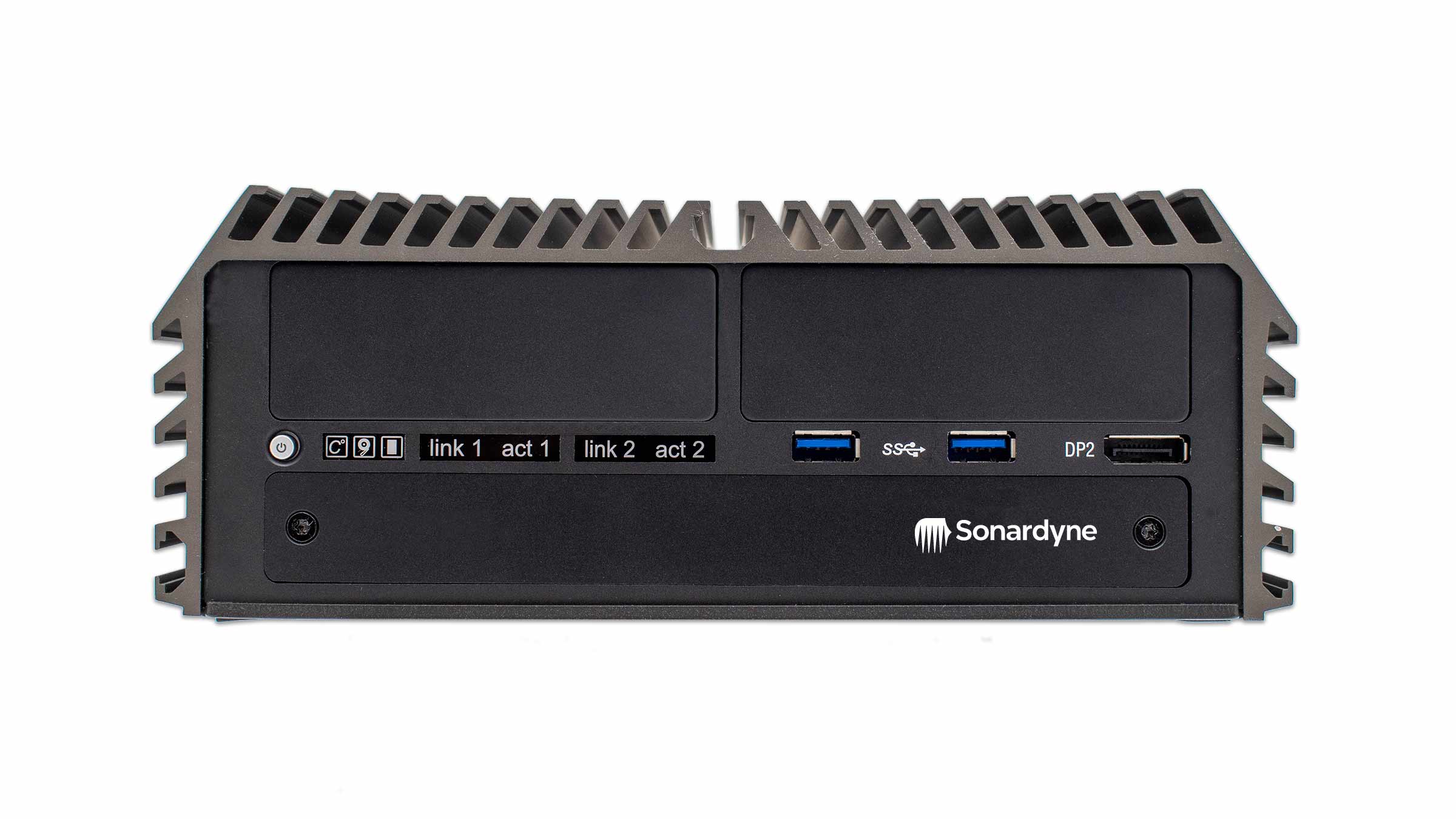

Marine Computer is our most powerful computer yet, designed to effortlessly run all of your Sonardyne software applications and those from third parties. Use it in a survey shack, install it in the bridge or rack mount it, Marine Computer works wherever you need it to.


At a glance

Choice of desktop or 2U rack mount configurations

Fanless and temperature tolerant design withstands harsh marine operating environments

Certified to EN 60945 and DNVGL-CG-0339; use it on your bridge

Intel 8th generation CPU runs intensive applications with ease

Desk, console and rack mounting options

Wide operating temperature range

The power driving our software

Want to know more?

Overview

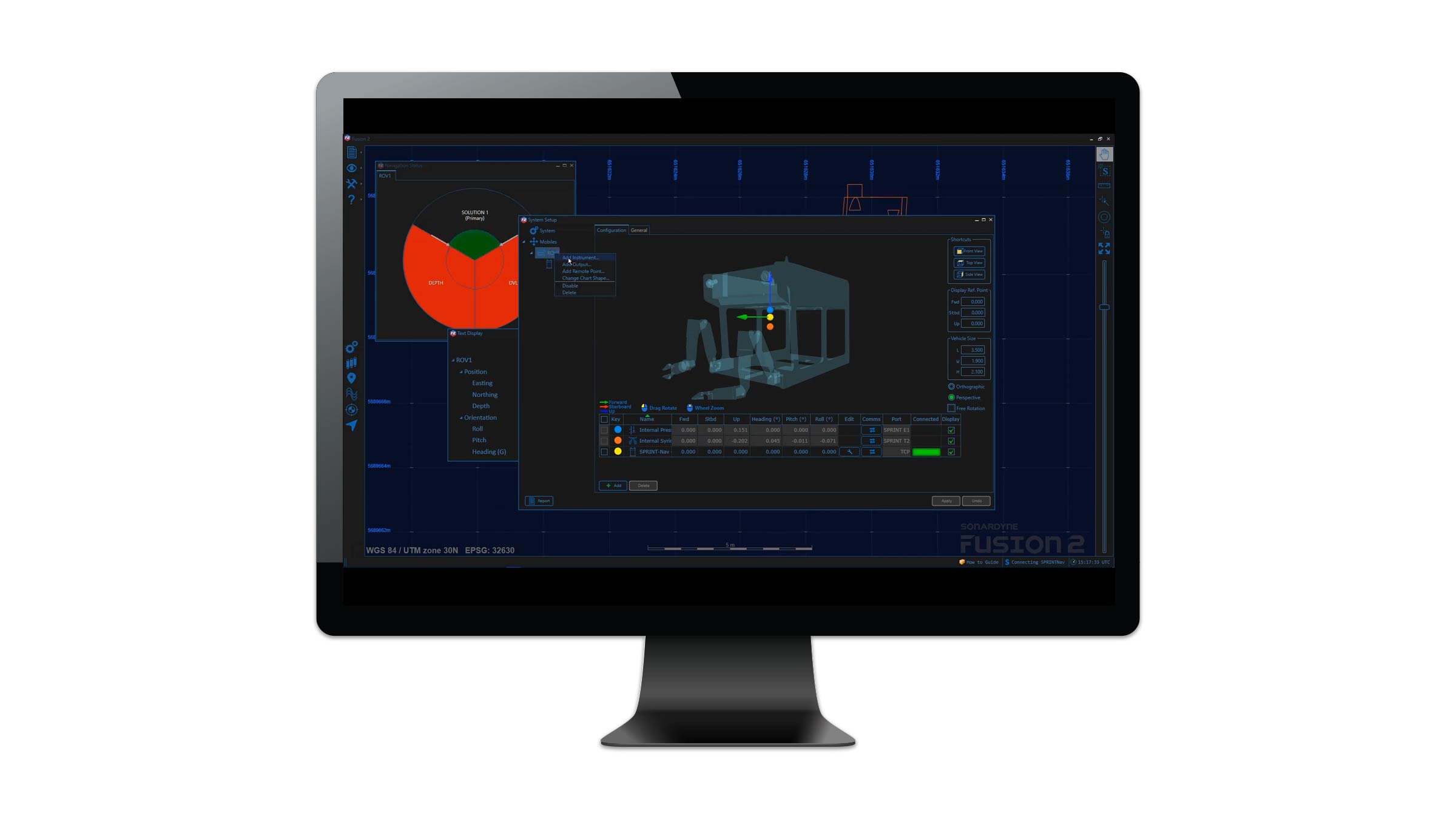

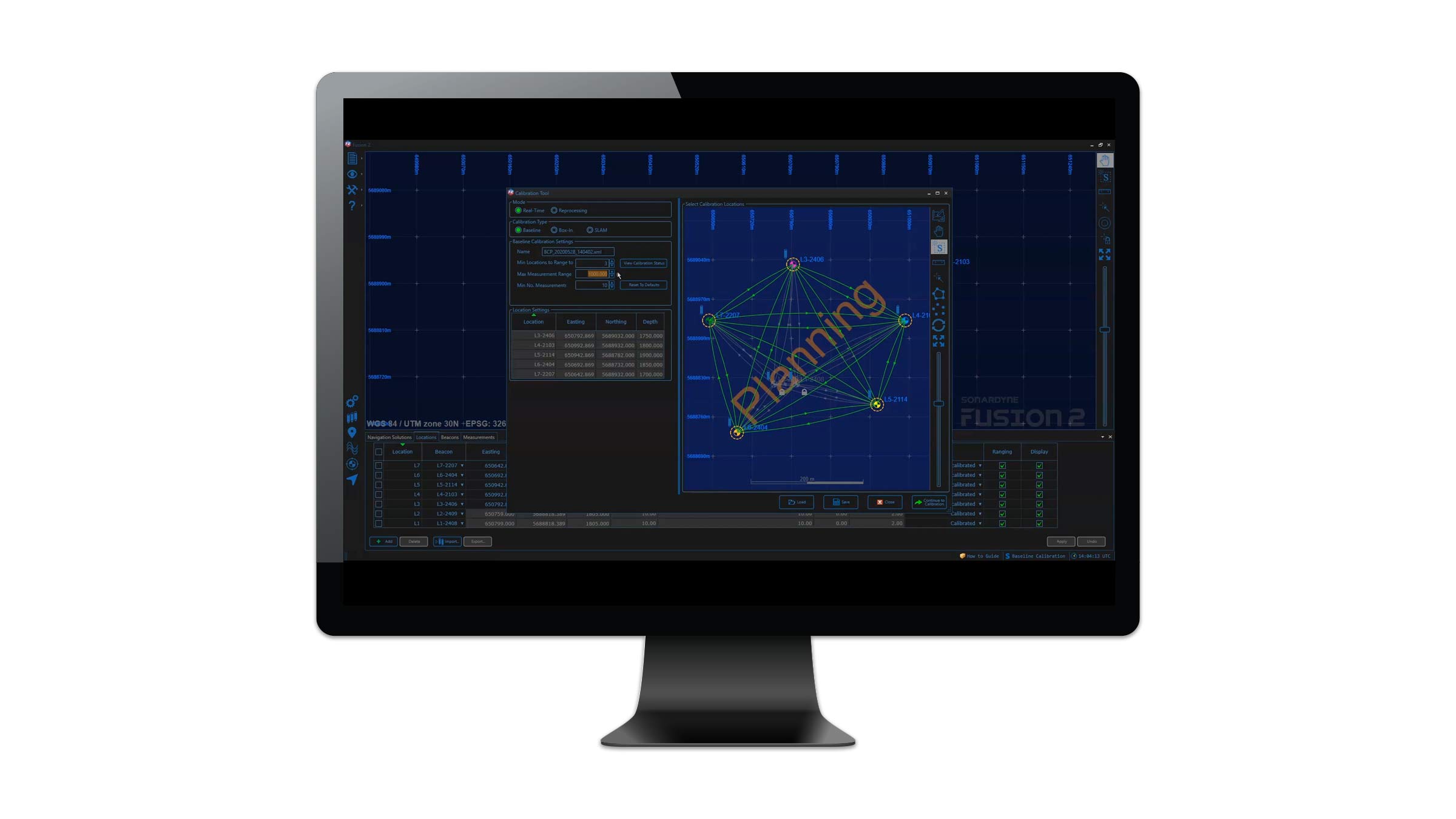

Using a superfast processor to handle intensive workloads, Marine Computer is designed and configured to provide you with the best possible experience when using our suite of navigation, positioning and imaging software products, leaving you to concentrate on the job in hand.

However, you don’t have to be using Sonardyne software to use one. If you’re in the market for a robust and easily configured computer to run third-party software applications onboard your ship, survey boat or unmanned craft, Marine Computer is the perfect choice.

That’s because it’s certified to EN60945 and DNVGL-CG-0339 standards which means it meets regulatory requirements use on ships’ bridges and is able to withstand harsh operating environments and constant high temperatures are present.

Fanless computers like the Marine Computer are perfect for use in dirty or dusty marine environments where actively cooled systems could quickly clog up, overheat and fail. Inside is an Intel 8th generation processor and 512 GB wide operating temperature solid state disk. SSDs have no moving parts so are faster and more reliable that traditional hard disk drives. Temperature tolerant components contribute to its impressive wide operating temperature range.

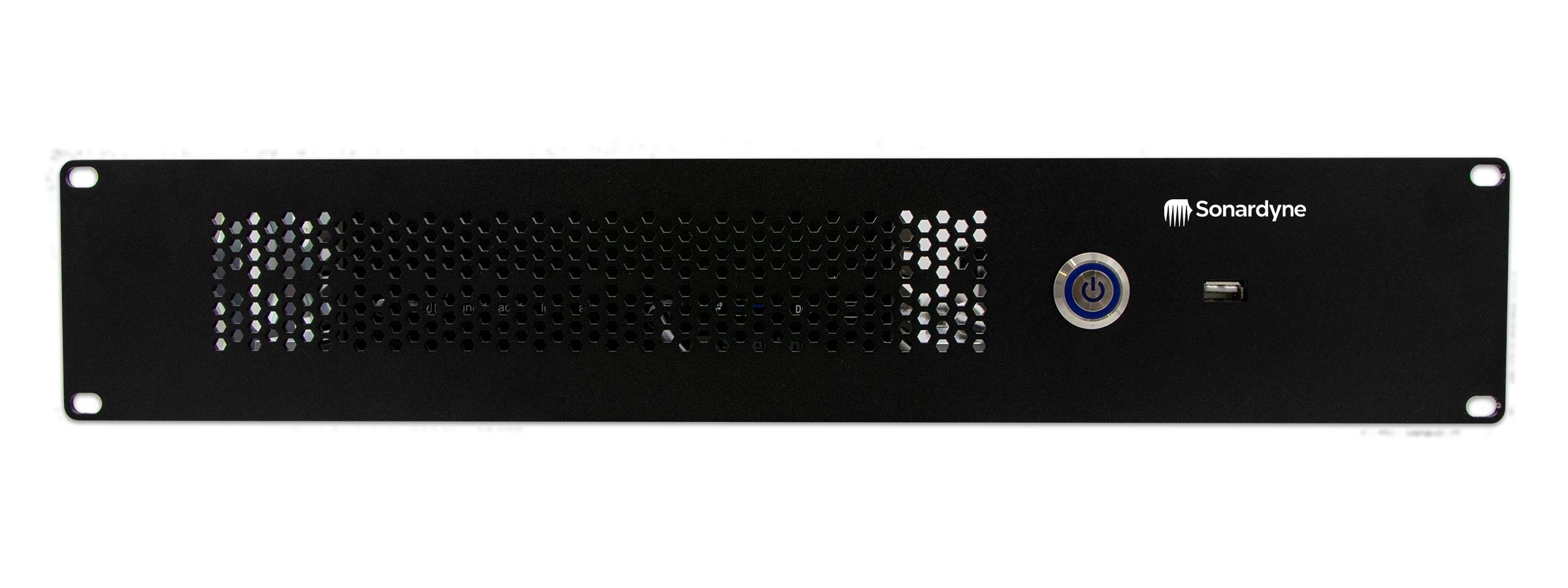

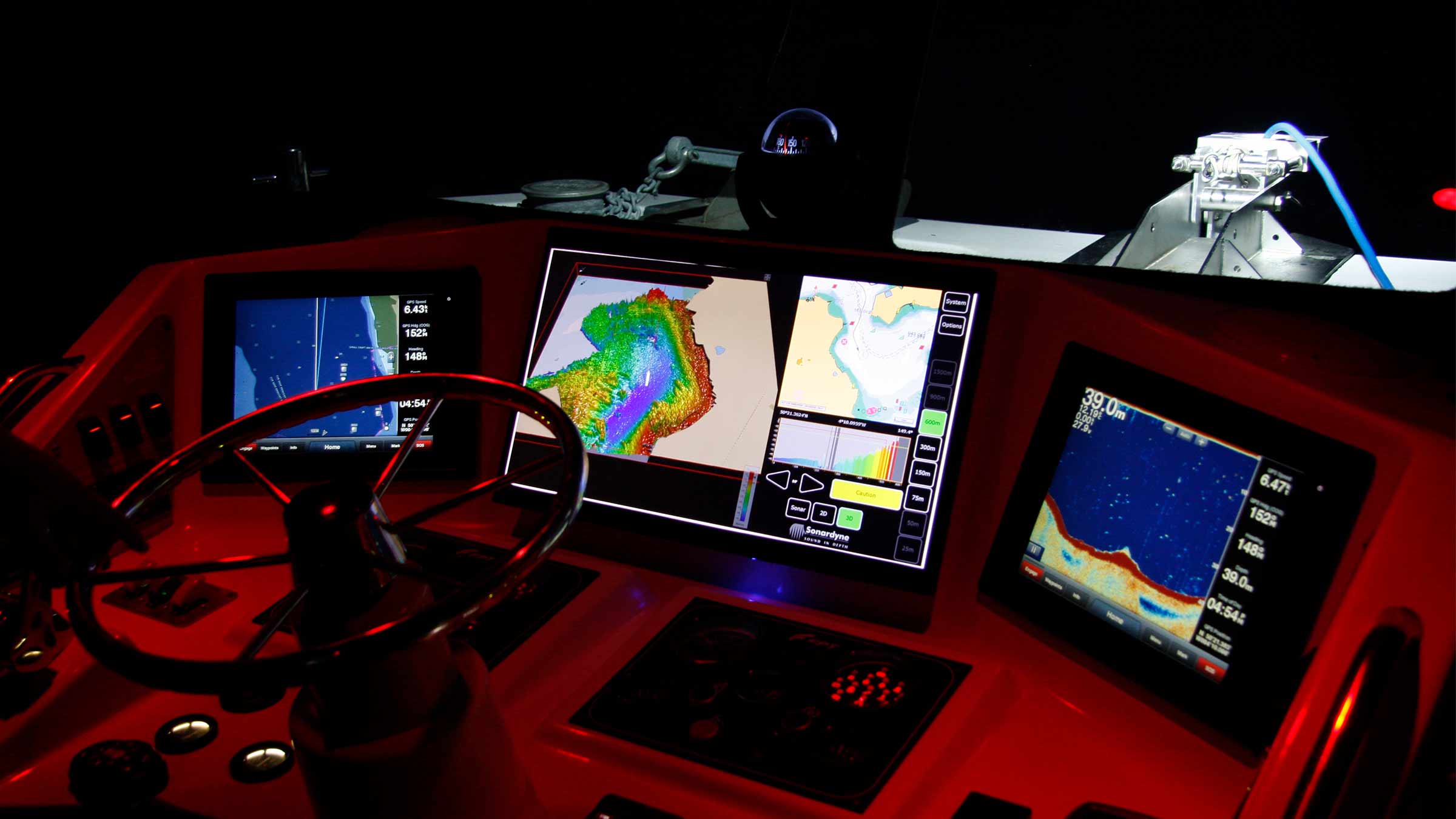

All this makes the Marine Computer an extremely versatile and reliable tool in virtually any marine installation condition: desk mounted, in a small survey boat; within a ship’s bridge console; or, when supplied with a custom 2U chassis, mounted in a server room rack.

Resources

Feature Specification
Processor Intel i7 8700T Hexacore 2.6 GHz
RAM 8 GB 2666 MHz DDR4 RAM (non-ECC, un-buffered)
Hard Disk Single 512 GB wide operating temperature SSD
Drives Additional 2.5” SATA drive bay

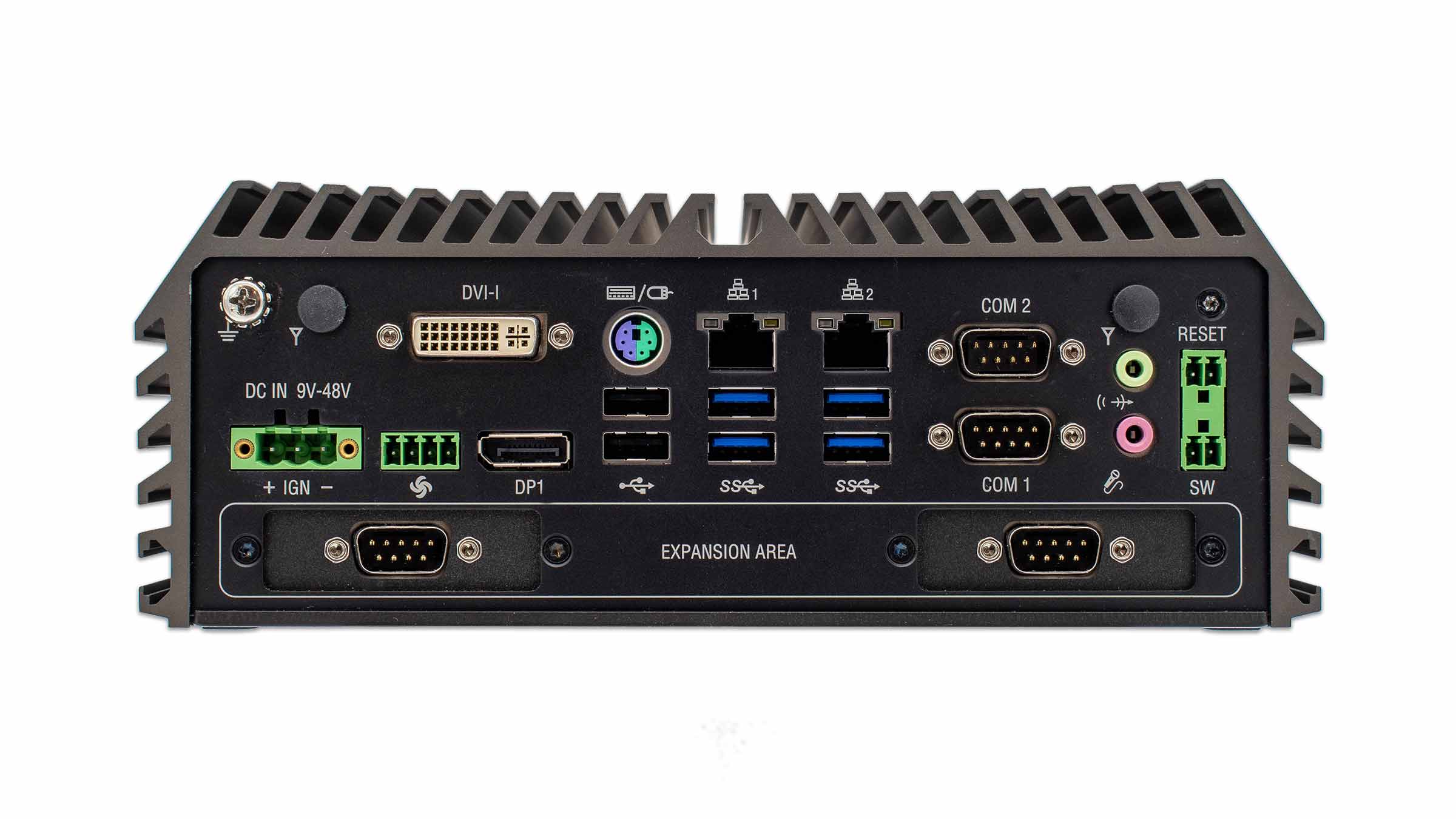

Ports 1x DVI, 2 x display port, 2x USB 3.1 Gen2, 4x USB 3.0, 2x USB 2.0, 4 x RS232/422/485 serial ports (with auto flow control), 1 x PS2 port, 1 x Line in, 1 x Mic in, 1 x Phone jack 3.5mm, External Fan port, external power port, external reset port
Network 2 x 1 Gbps Ethernet
Power In Auto sensing ac voltage: 115/230 V, 60/50 Hz Max power input: 221 W Input current: 2 A @ 230 V
Audio Realtek® ALC888 high definition audio
Video Supports triple independent display
Environmental Specifications Operating Temperature Storage Temperature Relative Humidity Vibration Shock -15 to 70ºC (5 to 158°F) -15 to 70ºC (5 to 158°F) 95% @ 70°C (non-condensing) 5 Grms, 5–500 Hz, 3 axes according to IEC60068-2-64 50 Grms, half-sine 11 ms duration according to IEC60068-2-27
Intended Use Indoor use (including bridge), altitude up to 2,000 m, continuous operation
EMC Immunity & Emission EN 60945 & DNVGL-CG-0339 compliant
Dimensions (WxDxH) Unmounted 227 x 261 x 88 mm (8.9 x 10.3 x 3.5”)
Shelf Mounted 482 x 423 x 88 mm (19.0 x 16.7 x 3.5”)
Weight Unmounted 4.3 kg
Shelf Mounted 10.5 kg
Options 265-5831 512 GB SSD hard drive
650-0219 Connector pack (1x dc power terminator, 1 x SW reset terminator, 1 x reset terminator, 1 x fan terminator)
