Sentinel Sonar Processor / Command Workstation

Sentinel control room equipment

Engineered for: Diver, Seabed

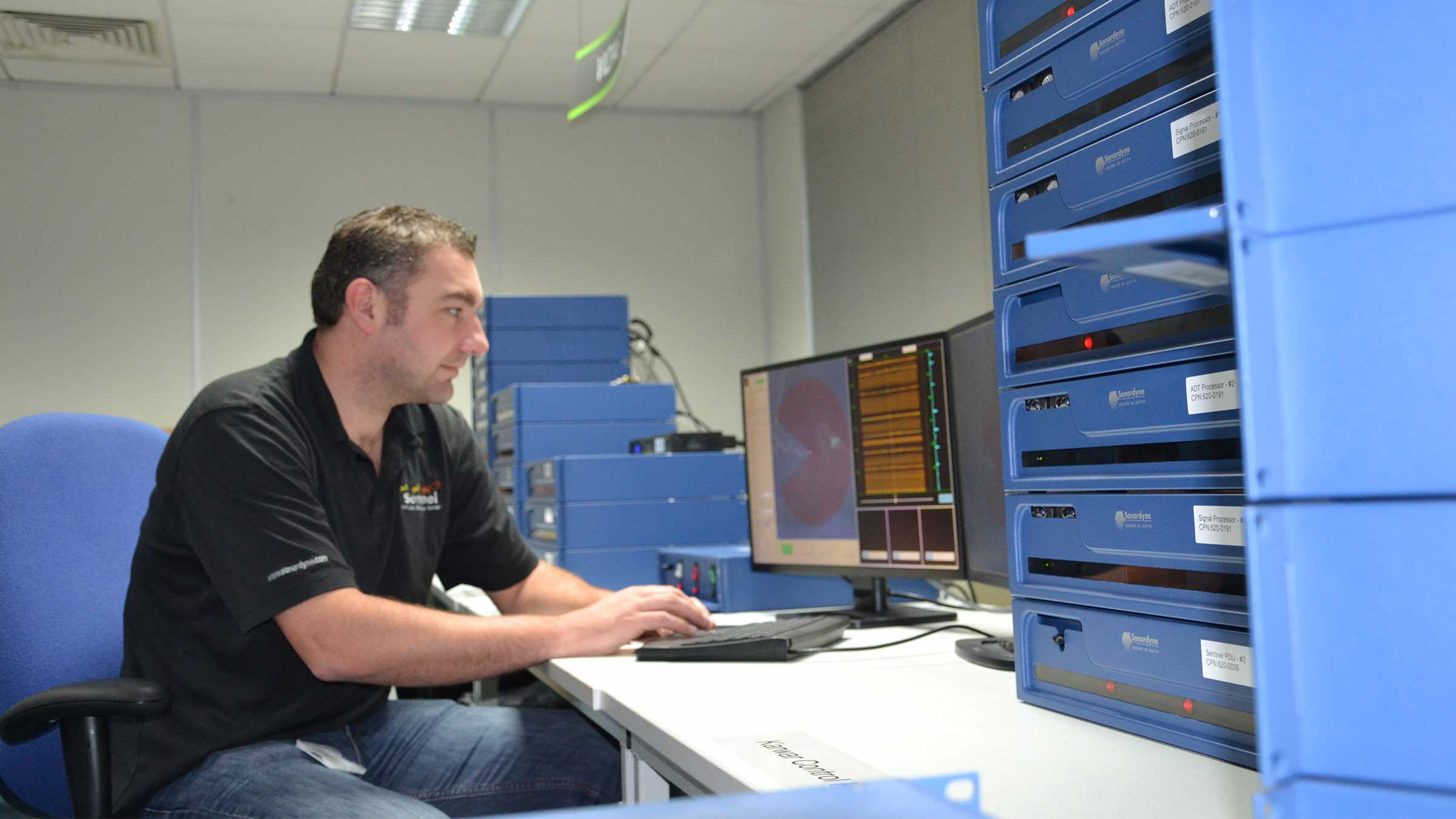

Sentinel systems are controlled using a Sonar Processor and Command Workstation; equipment that is typically installed in a security suite, server room or in rugged case when a portable configuration has been specified.


At a glance

One SP required per sonar head; One CW required per 10 sonar heads

Standard 19″/482.6 mm IEC 60297 rack mounting equipment

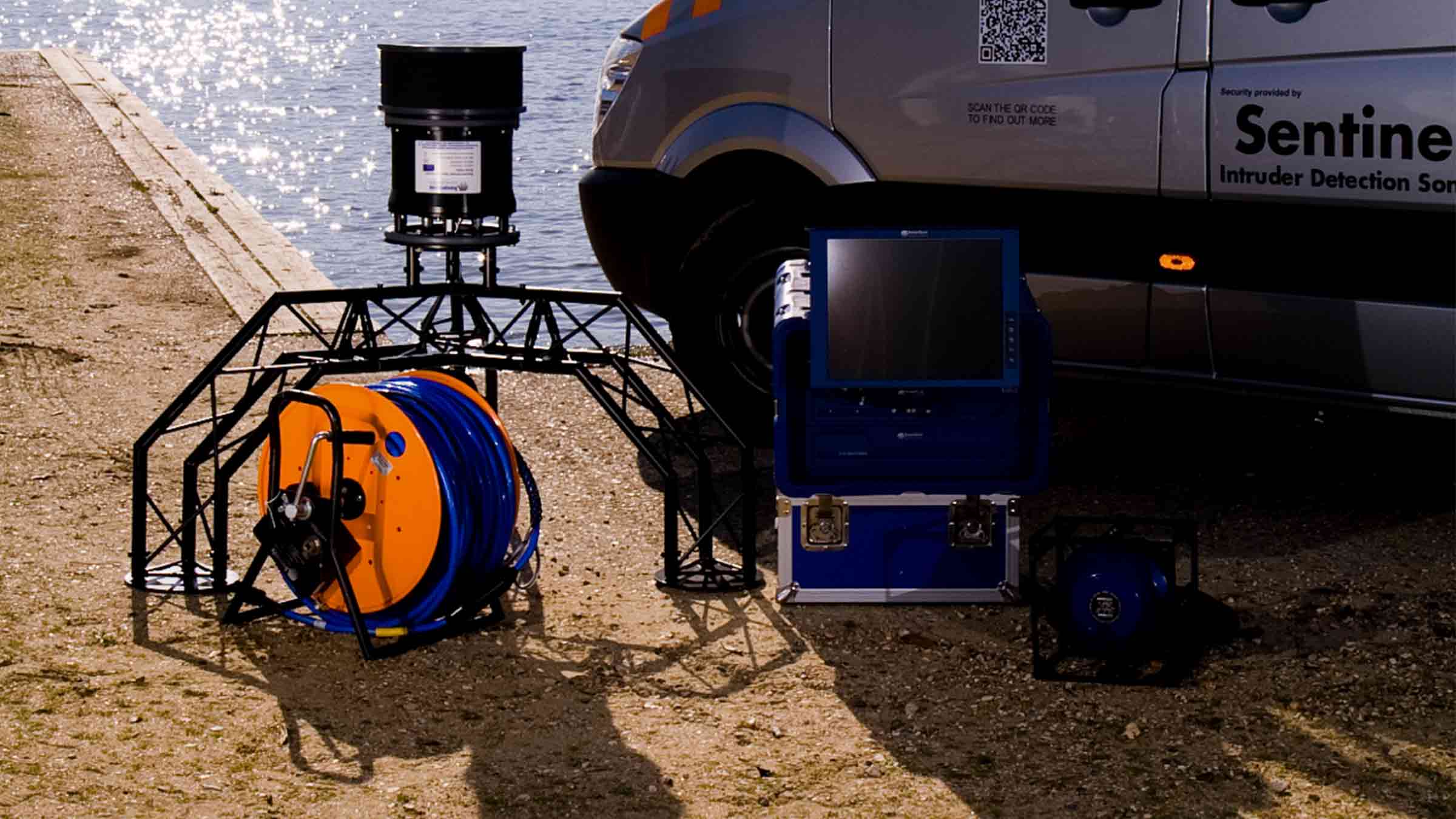

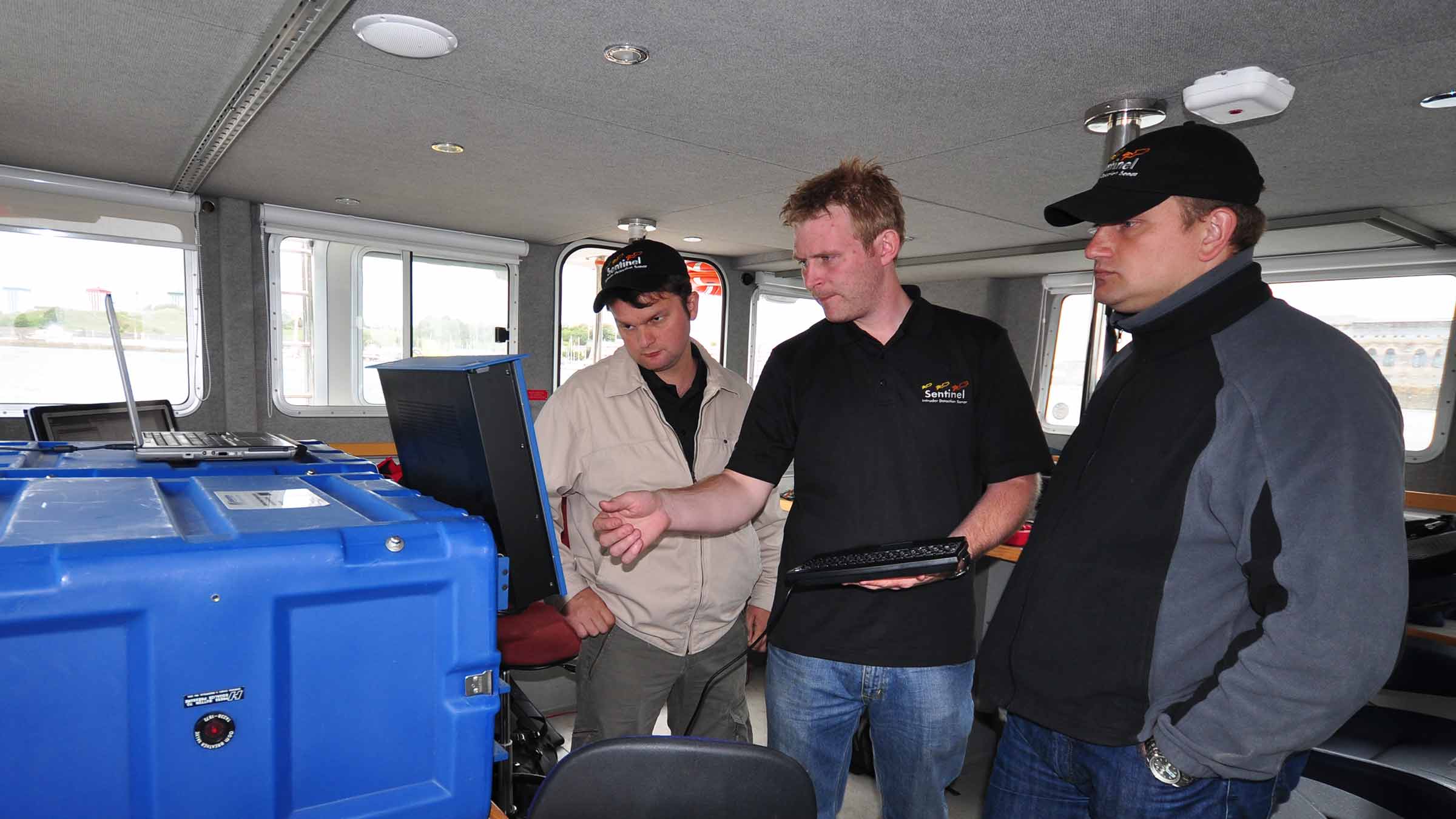

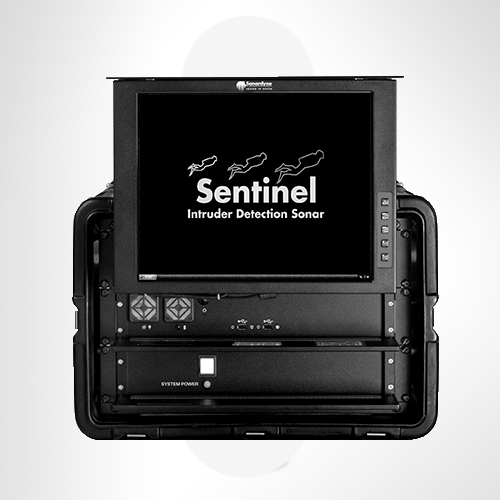

Optional ruggedised case for expeditionary scenarios

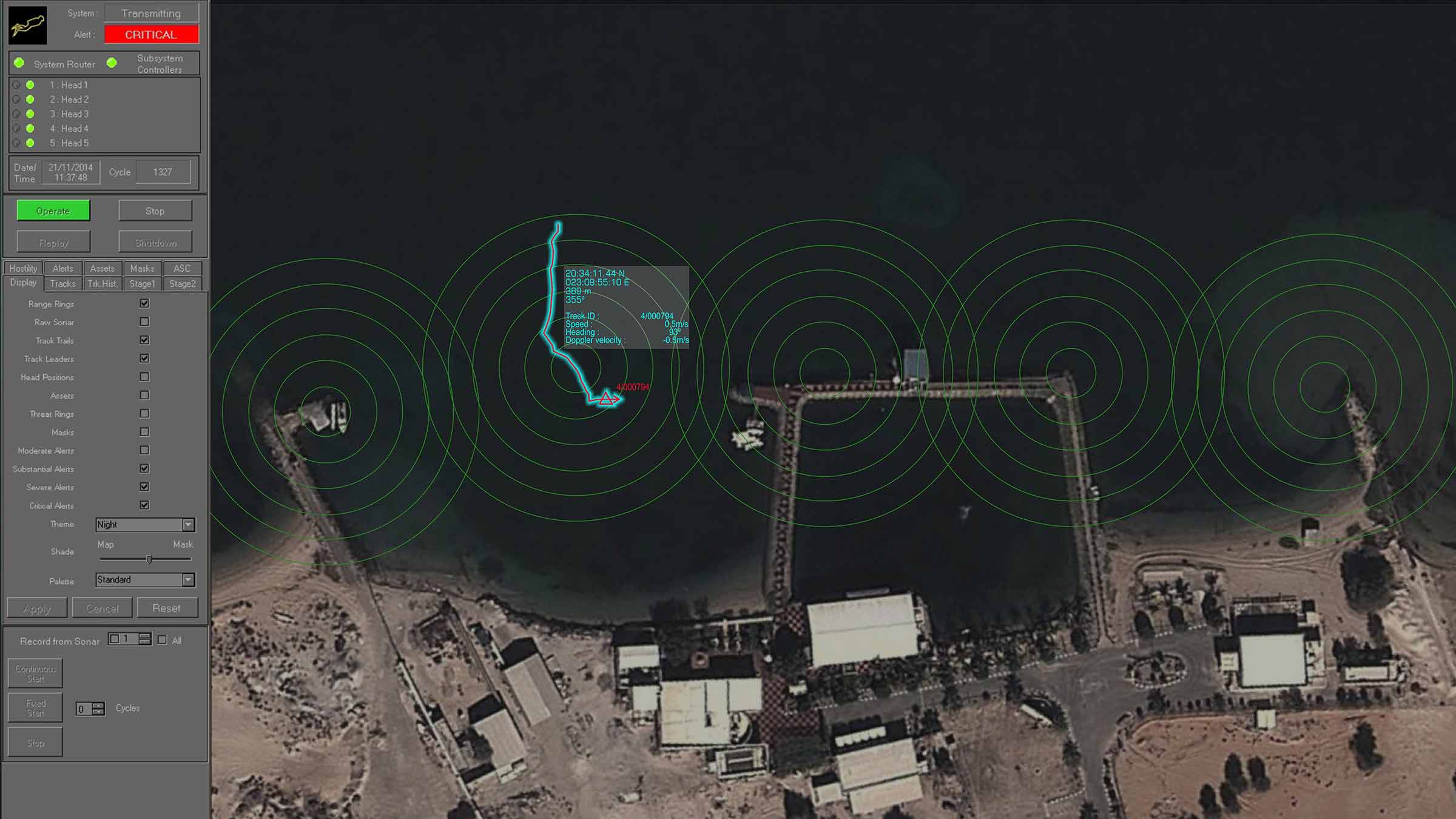

Performs correlation, beamforming and tracking processes

Your complete topside for maritime security

Want to know more?

Overview

The Sonar Processor (SP) and Command Workstation (CWS) and are designed to meet the complete topside requirements of any Sentinel installation.

The CWS is a powerful PC custom-built to run the Sentinel software application. Up to 10 sonar heads can be operated from a single CWS. The SP is used to perform signal and data processing on the raw sonar data received from each in-water sonars. One is required for each sonar head and is typically located with the CWS in a control or server room.

Resources

Feature Command Workstation Sonar Processor
Power Supply Auto-switching 115/230 V ac, 6/3 A, 60/50 Hz Manual switched 115/230 V ac, 6/3 A, 60/50 Hz
Dimensions (Length x Width x Height) 384 x 482 x 88 mm (15.1 x 18.9 x 3.4”) 384 x 482 x 88 mm (15.1 x 18.9 x 3.4”)
